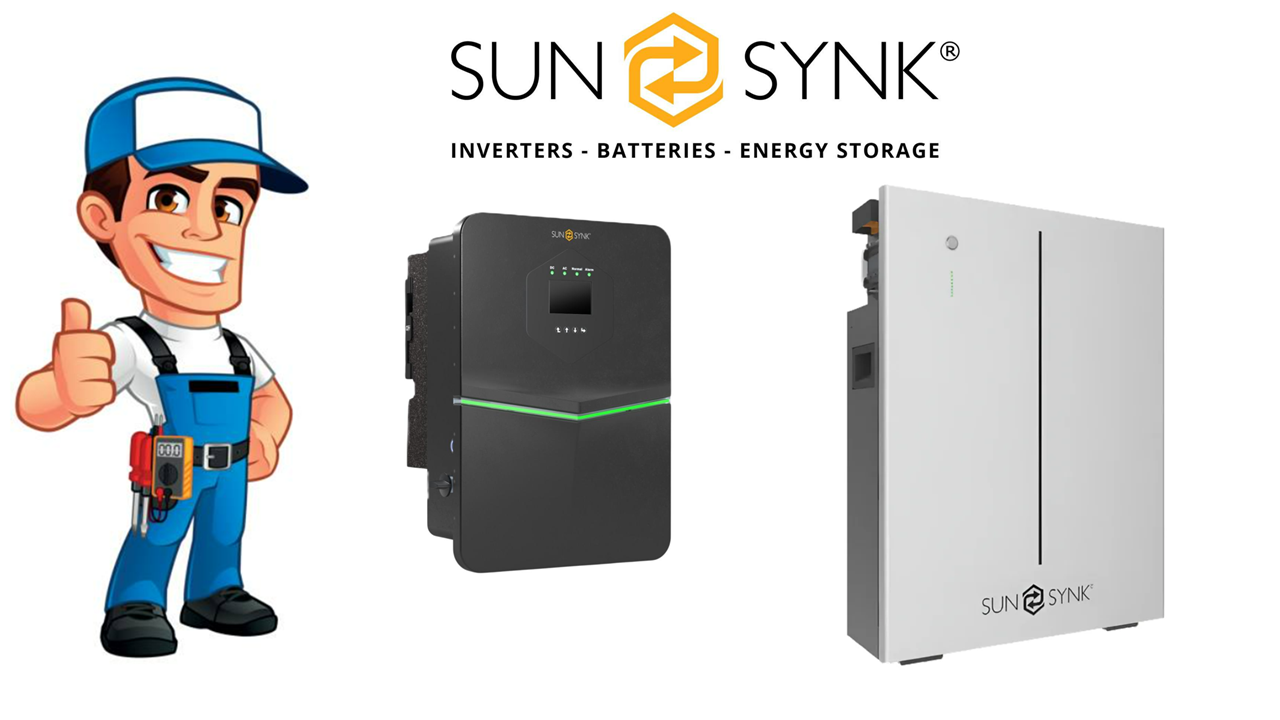

Installed Sunsynk ACURE 3.6/5/7/8kW Hybrids (10yr Warranty) | Sunsynk W10.6 Options | Wall Mounted | Outdoor | Colder Temperatures | On/Off Grid | EPS available | Ave £276/kW

Fully Installed Sunsynk ACURE Hybrid Inverters with W10.6 LiFePO4 Battery options

To view our full range of installed battery storage packages visit our collection page here

To request a bespoke quote please complete our quotes form

Nationwide Solar & Battery Installations Across the UK

We provide professional solar and battery storage installations nationwide across most areas of the UK. Every system is fully certified and installed by qualified engineers, giving you peace of mind and long-term reliability.

#5: INSTALLED-SUN-W10.6 Storage Systems - Hybrid Inverter

Sunsynk W-Series 10.64kWh Data Sheet

Sunsynk W-Series 10.64kWh User Manual

Sunsynk ACURE Data Sheet

Sunsynk ACURE Warranty

Home Backup:

Home back up is available for this system by utilising the EPS critical loads package. To add this to your order, following payment of the deposit, notify our team along with the requested information that EPS set up is required so the cabling route can be checked and can be added to your order wihout VAT.

Sunsynk Acure Hybrid Inverter & Smart Energy Management System (3.6kW–12kW)

Warranty is applicable to 10 years when matched with a Sunsynk battery.

Take full control of your energy with the Sunsynk Acure, a next-generation hybrid inverter and smart energy management system designed for seamless power optimisation, advanced safety, and effortless installation.

Engineered for both residential and commercial solar installations, the Acure combines intelligent load management, integrated connectivity, and industry-leading protection features — all in one powerful, compact unit.

Key Features & Benefits

• Smart Energy Management – Optimise energy usage with programmable wireless smart switches
• Expandable System – Connect up to 10 wireless smart switches for tailored load control
• Integrated 40A Smart Switch – Reliable power distribution built-in
• Advanced Connectivity – Built-in Bluetooth, Wi-Fi, LAN (Ethernet), and LoRa
• Real-Time Monitoring – Track generation, consumption, and battery performance
• User-Friendly Interface – New intuitive UI for installers and end users
• Automatic Load Shedding – Prioritises essential loads during power outages
• Multi-Colour LED Status Display – Instant system visibility

Built for Performance & Flexibility

The Sunsynk Acure hybrid inverter is available in:

• Single-phase: 3.6kW – 8kW
• Three-phase: 5kW – 12kW

Suitable for:

• Solar PV systems
• Battery storage installations
• Wind turbine integration
• EV charging systems
• Hot water tank control

Sunsynk W-Series IP65 LiFePO4 Battery – Reliable Solar Energy Storage

At ITS Technologies, we supply and install the Sunsynk W-Series IP65 LiFePO4 Battery, designed for residential and commercial solar installations. Available in 5.32kWh and 10.64kWh capacities, this battery combines performance, safety, and durability for long-lasting energy storage, even in harsh UK conditions.

With a sleek black or white design, the Sunsynk W-Series battery is built to last and integrates easily into modern solar systems.

Key Features & Benefits

✔ High Performance & Long Lifespan

• Advanced LiFePO4 cells for maximum efficiency and extended lifecycle.

• Supports up to 32 batteries in parallel for scalable storage solutions.

• 90% Depth of Discharge (DoD) for greater usable energy.

✔ Safety & Reliability

• Integrated 125A 4-pole MCB for enhanced circuit protection.

• IP65 rated for indoor or outdoor installations, resistant to dust and water.

• Optional cell-level monitoring for advanced system oversight.

✔ Flexible Installation Options

• Can be wall-mounted or rack-mounted depending on system requirements.

• Suitable for both single or multiple battery setups (ensure correct cabling and circuit protection).

Technical Specifications

Battery Details

• Battery Type: Lithium (LiFePO4)

• Capacity: 10.64kWh

• Voltage: 51.2V

• Rated Power: 5,320W

• Continuous Discharge Rate (Normal Use): 2,500W

• Depth of Discharge: 90% usable (100% total)

• Cycle Life: 6,000 cycles @ 90% DoD

• Weight: 101kg

Dimensions & Warranty

• Dimensions (L x H x W): 610 x 760 x 200 mm

• Warranty: 10 years

Installer Notes

• Ensure proper cabling and circuit protection when connecting multiple batteries.

• Do not mix different battery types within the same system.

⚡ Optimise your solar energy system with the Sunsynk W-Series IP65 LiFePO4 Battery – a safe, reliable, and scalable solution for long-term energy storage.

Sunsynk App – Full Control at Your Fingertips

• Real-time push notifications – instant alerts for power cuts, generator or battery use

• Remote settings adjustment – manage your hybrid inverter from anywhere with an internet connection

• Complete inverter control – access advanced features like system updates and upgrades

• Live stats and monitoring – track energy usage, identify peaks, and optimise savings

• Custom reporting and graphs – generate reports to understand system performance and cost savings

Smart Energy Management with Octopus Agile & Flux

• Integrated with Octopus Agile, Flux & Go, allowing you to charge your battery at the cheapest rates

• Automated discharge at higher electricity rates to maximise savings

• Enables efficient self-consumption of solar energy and reduced reliance on the grid

• Supports real-time monitoring and optimisation through the Sunsynk data logger platform

Why Choose Sunsynk ECCO with W5.3 Battery?

• Flexible hybrid energy management – charge from solar or the grid and sell back to the national grid

• Reliable, durable battery storage suitable for indoor or outdoor installation

• Scalable and modular – expand your system as energy needs grow

• Smart app integration – full control and monitoring for maximum efficiency and savings

• Future-proof investment – advanced LiFePO4 battery technology and UK-ready energy solutions
