Nationwide Solar & Battery Installations Across the UK
We provide professional solar and battery storage installations nationwide across most areas of the UK. Every system is fully certified and installed by qualified engineers, giving you peace of mind and long-term reliability.
Sunsynk 10-12kw Data Sheet
Sunsynk 16kW Data Sheet
Fogstar 16.1kWh ECO Datasheet
Home Backup:
Home backup is available by utilising the Fox EPS Box together with the Gateway / EPS wiring. To add this to your order, following payment of the deposit, notify our team along with the requested information so the cabling route can be checked and can be added to your order without VAT.

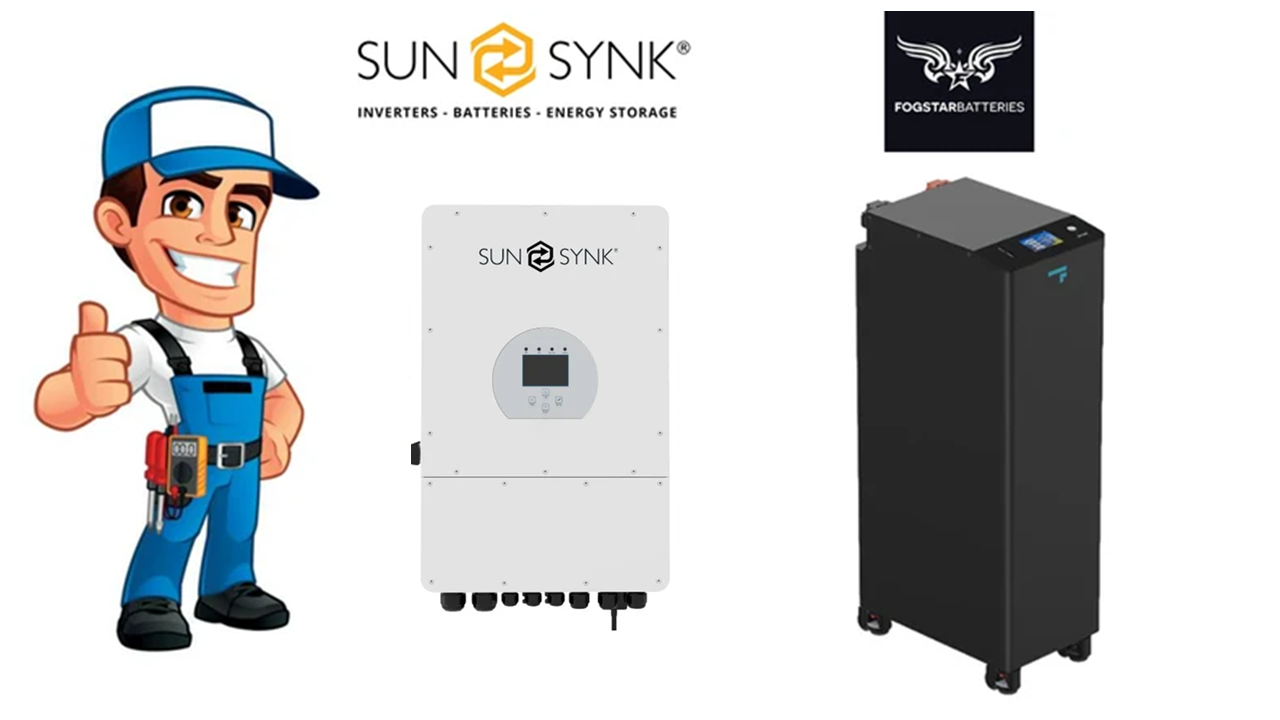

Sunsynk 10-12kW Single-Phase Hybrid Inverter
The SunSynk 10kW Inverter represents the next generation of super hybrid solar inverters, delivering exceptional performance, flexibility and reliability for home and commercial energy systems.
With a powerful 15,000 W MPPT input and a rated 10 kW AC output, this single-phase inverter generates more than enough energy even during the winter months to offset overall electricity usage.
Key Features
-
Dual MPPT design for optimal solar energy harvesting
-
Compatible with Lithium-ion and Lead-Acid batteries
-
IP65 weatherproof rating for indoor or outdoor installation
-
Anti-islanding protection for grid safety compliance
-
Fully programmable power export control
-
Automatic switching between Grid-Tied and Off-Grid operation
-
Parallel capability — connect up to 16 units (with same firmware)
-
Maximum charging/discharging current: 220 A
-
Supports energy storage from diesel generators
-
Essential and Non-Essential Loads outputs for smart energy management
-
5-year standard warranty
Sunsynk MAX 16kW Single-Phase Hybrid Inverter
Overview
The Sunsynk MAX 16kW is the largest single-phase hybrid inverter on the market, designed for off-grid, grid support, backup, and self-consumption solar PV systems. This low-voltage (48V) inverter is highly versatile and can also be used in three-phase or single-phase parallel configurations for larger installations.
Key Features
-
Flexible Parallel Operation:
-
Triple MPPT Inputs: Allows for flexible PV array design and maximises energy harvest.
-
Programmable Operation Modes: On-grid, off-grid, and UPS functionality.
-
IP65 Rated: Suitable for indoor and outdoor installations.
-
Wi-Fi Enabled: Built-in dongle for remote monitoring via the Sunsynk Cloud.
-
Battery Compatibility: Works with Hubble Lithium, Pylontech LV, Freedomwon, Kodak (BL3.6), and other leading brands.
-
Integrated DC Switch: Simplifies installation and improves safety.
-
High Efficiency: Euro efficiency up to 97.6%.
-
5-Year Warranty
Commercial-Grade Lithium Storage | Integrated Fire Suppression | Cold-Weather Charging to -10°C
The Fogstar Energy 48V 16.1kWh ECO Battery (2026 Edition) is a fully assembled, high-performance lithium energy storage solution designed for residential and small commercial solar installations.
Built using 3.2V 314Ah Grade A LiFePO₄ cells in a robust 1P16S configuration, this battery delivers exceptional cycle life, reliable performance, and seamless compatibility with leading hybrid inverter brands.
The upgraded 2026 model introduces integrated fire suppression and built-in battery heating, allowing safe charging down to -10°C — making it ideal for garages, plant rooms, outbuildings, and winter installations across the UK.
Whether you're installing for a homeowner or designing a scalable commercial system, this unit offers safety, longevity, and outstanding value.
Key Benefits
✔ Fully Assembled – Ready to Install
Supplied as a complete Fogstar / Seplos built unit. No DIY assembly required. Perfect for installers looking for a plug-and-play solution.
✔ Scalable Energy Storage
Connect up to 16 units in parallel for a total capacity of 257.6kWh — ideal for larger residential projects or commercial energy systems.
✔ Long Lifespan Performance
• 8000 cycles at 80% Depth of Discharge
• Designed for long-term daily cycling
• Stable LiFePO₄ chemistry
✔ Integrated Fire Suppression (2026 Upgrade)
An automatic, heat-activated aerosol fire suppression system provides rapid internal protection for enhanced system safety.
✔ Cold-Weather Charging to -10°C
Built-in battery heating allows reliable charging in colder environments — perfect for UK winters and unheated installation spaces.
✔ Intelligent Battery Management
• Seplos 200A BMS
• JK 2A Active Balancer
Ensures optimal cell balancing, extended lifespan, and consistent performance.
✔ Seamless Inverter Compatibility
Pre-loaded communication protocols support:
• Victron
• Pylontech
• Growatt
• Sofar
• Solis
• Goodwe
Includes:
1.5m CAN & RS485 communication for smooth integration.
1.5m 50mm battery cable terminated with M8 ring lugs
✔ Real-Time Monitoring
Integrated LCD touchscreen display provides live system data and operational feedback.
✔ Commercial-Grade Value
High capacity, premium components, and advanced safety features at an exceptional cost per kWh.
