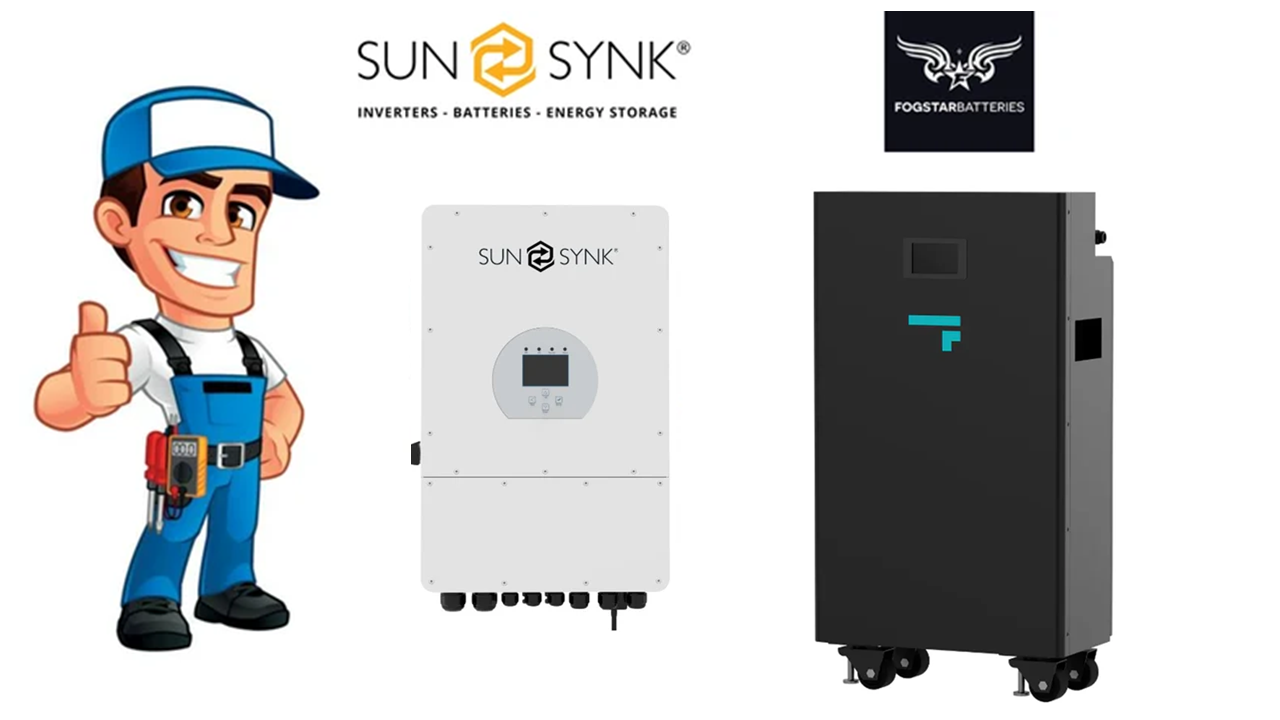

Installed Sunsynk 10/12/16kW Hybrid | Fogstar Energy | IP65 10yr Warranty Model | Heating Element | Fire Suppression | Ave £210/kW

To view our full range of home battery storage packages visit our collection page here

To request a bespoke home battery storage quote please complete our quotes form

Nationwide Solar & Battery Installations Across the UK

We provide professional solar and battery storage installations nationwide across most areas of the UK. Every system is fully certified and installed by qualified engineers, giving you peace of mind and long-term reliability.

Sunsynk 10-12kw Data Sheet

Sunsynk 16kW Data Sheet

Fogstar 16.1kWh IP65 Datasheet

Home Backup:

Home backup is available by utilising the Fox EPS Box together with the Gateway / EPS wiring.  To add this to your order, following payment of the deposit, notify our team along with the requested information so the cabling route can be checked and can be added to your order without VAT.

Wall bracket - option wall bracket available here for wall mounted installation

Sunsynk MAX 10-12kW Single-Phase Hybrid Inverter

The SunSynk 10kW Inverter represents the next generation of super hybrid solar inverters, delivering exceptional performance, flexibility and reliability for home and commercial energy systems.
With a powerful 15,000 W MPPT input and a rated 10 kW AC output, this single-phase inverter generates more than enough energy even during the winter months to offset overall electricity usage.

Key Features

• Dual MPPT design for optimal solar energy harvesting

• Compatible with Lithium-ion and Lead-Acid batteries

• IP65 weatherproof rating for indoor or outdoor installation

• Anti-islanding protection for grid safety compliance

• Fully programmable power export control

• Automatic switching between Grid-Tied and Off-Grid operation

• Parallel capability — connect up to 16 units (with same firmware)

• Maximum charging/discharging current: 220 A

• Supports energy storage from diesel generators

• Essential and Non-Essential Loads outputs for smart energy management

• 5-year standard warranty

Sunsynk MAX 16kW Single-Phase Hybrid Inverter

Overview

The Sunsynk MAX 16kW is the largest single-phase hybrid inverter on the market, designed for off-grid, grid support, backup, and self-consumption solar PV systems. This low-voltage (48V) inverter is highly versatile and can also be used in three-phase or single-phase parallel configurations for larger installations.

Key Features

• Flexible Parallel Operation:

  • Up to 15 inverters in a three-phase configuration (5 per phase) for a maximum output of 240kW.

  • Up to 3 inverters in a single-phase setup for 48kW total power.

• Triple MPPT Inputs: Allows for flexible PV array design and maximises energy harvest.

• Programmable Operation Modes: On-grid, off-grid, and UPS functionality.

• IP65 Rated: Suitable for indoor and outdoor installations.

• Wi-Fi Enabled: Built-in dongle for remote monitoring via the Sunsynk Cloud.

• Battery Compatibility: Works with Hubble Lithium, Pylontech LV, Freedomwon, Kodak (BL3.6), and other leading brands.

• Integrated DC Switch: Simplifies installation and improves safety.

• High Efficiency: Euro efficiency up to 97.6%.

• 5-Year Warranty

Fogstar Energy 16.1kWh IP65 Solar Battery (48V LiFePO4)

⚡ High-Capacity Outdoor Battery Storage for UK Homes & Businesses

The Fogstar Energy 16.1kWh IP65 Solar Battery is a premium, high-capacity 48V LiFePO4 battery system engineered for UK residential and commercial energy storage. Designed to operate reliably in harsh environments, this battery combines advanced safety features, intelligent thermal control, and wide inverter compatibility—making it one of the most versatile solar batteries available in the UK market.

Perfect for off-grid systems, solar PV storage, and time-of-use energy optimisation, the Fogstar 16.1kWh battery delivers long lifespan, high performance, and exceptional value.

✅ Key Benefits

• 🔥 Built-in Fire Suppression System – Automatic aerosol fire protection for enhanced safety

• 🌧️ IP65 Rated (Indoor & Outdoor Use) – Fully sealed against dust and water

• ❄️ Integrated Heating System – Operates down to -20°C with charging from 0°C

• 🔌 Plug & Play Inverter Compatibility – Works with Victron, Solis, Growatt, Sofar, Goodwe & Pylontech

• 🔋 16.1kWh High Capacity – Ideal for homes with high energy usage or commercial systems

• 🔁 Up to 8,000 Cycles – Long lifespan with Grade A EVE LiFePO4 cells

• 📈 Expandable System – Connect up to 15 batteries in parallel

• ⚡ Integrated 250A DC Breaker – Built-in protection for safe operation

• 🧠 Smart Touchscreen Display – Real-time monitoring & protocol selection

• ⚙️ Active Cell Balancing (2A JK Balancer) – Maximises performance & lifespan

🏡 Built for UK Conditions

The Fogstar Energy battery is specifically engineered to perform in UK climates, where temperature fluctuations and outdoor installations are common.

Its automatic heating system ensures reliable operation in winter, while the IP65-rated enclosure protects against rain, dust, and environmental exposure—making it ideal for garages, outbuildings, and external wall installations.

🔥 Advanced Safety as Standard

Safety is a major differentiator for Fogstar:

• Integrated aerosol fire suppression system

• High-quality LiFePO4 chemistry (safer than lithium-ion alternatives)

• Built-in DC breaker for fault protection

• Active balancing for cell stability

This makes it one of the safest home battery systems available in the UK today.

No software downloads required—simply select your inverter via the LCD touchscreen.

📈 Scalable Energy Storage System

Start with a single 16.1kWh unit and expand as needed:

• 🔗 Up to 15 batteries in parallel

• Ideal for:

  • Large residential properties

  • Commercial buildings

  • Farms & off-grid applications

🛠️ Simple Installation

• Supplied with M8 ring terminals & protective covers

• Integrated wheels for easier handling (140kg unit)

• Compact footprint for flexible installation locations

📊 Technical Specifications
