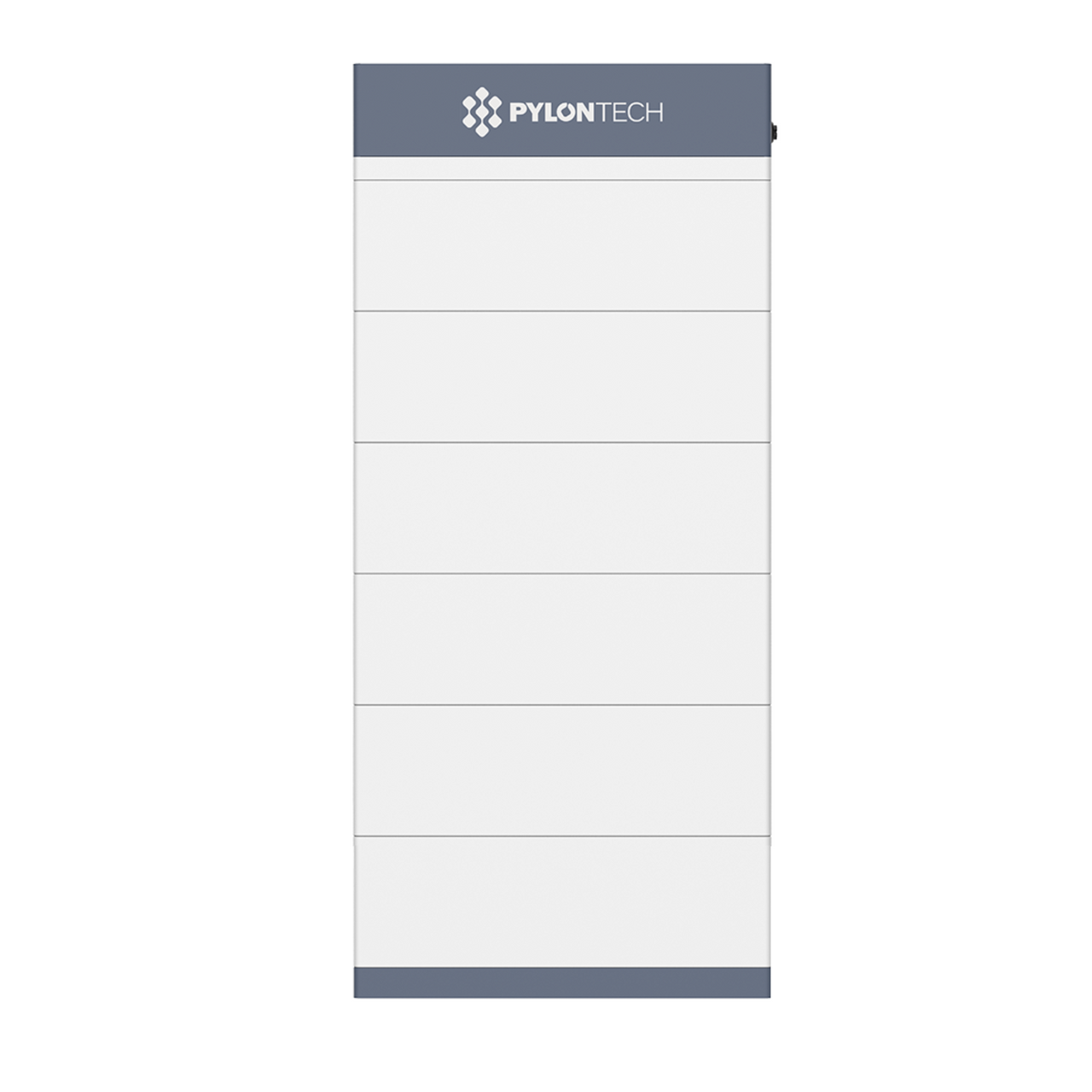

Pylon Force-H3 High Voltage 6 X 5.1kWh batteries incl. BMU (30.7 kWh)

Pylon Force-H3 High Voltage System stack of 6 incl. BMU (30.7 kWh)

#2: PYL-F-H3-BATT-BMU-30.7

Pylon Force-H3 Datasheet

Pylon Force-H3 Installation Manual

Pylon Force-H3 Warranty

Pylontech Force H3 – High Voltage Battery Storage System (30.7kWh)

The Pylontech Force H3 is the latest generation high-voltage lithium iron phosphate (LiFePO4) battery system, designed for large-scale residential and commercial energy storage applications. This stackable, modular solution ensures long-lasting performance, high efficiency, and easy installation.

This system includes:

• 6 x Pylontech Force H3 5.1kWh Battery Modules (PYL-F-H3-BATT)

• 1 x Pylontech Force H3 BMU with Base & Cables (PLY-F-H3-BMU-BASE)

Key Features

• Easy Installation: Plug-and-play design for quick setup.

• Flexible Scalability: Connect up to 6 battery towers in parallel for even greater storage capacity.

• High Performance: 1C rating allows for faster charging and discharging.

• Durability: Designed for 8000+ charge cycles or up to 15 years of use.

• Remote Monitoring: Track performance in real time via mobile app.

• Wide Compatibility: Works with multiple leading inverter brands.

• Certified & Reliable: Globally certified for safety and performance.

• Warranty: 10-year manufacturer warranty as standard.

Technical Specifications

• Total Weight: 272.2 kg

• Nominal Energy: 30,720 Wh (30.7kWh)

• Depth of Discharge (DoD): 95%

• Nominal Voltage: 614 V

• Continuous Discharge Power: 30,720 W

• Maximum Discharge Power (5 Minutes): 30,720 W

• Surge Discharge Power (15 Seconds): 33,792 W

⚠️ Compatibility Note: Not suitable for Solis 3-phase hybrid inverters below 12kW (5–10k range), as the Force H3 system voltage exceeds 600 V.
