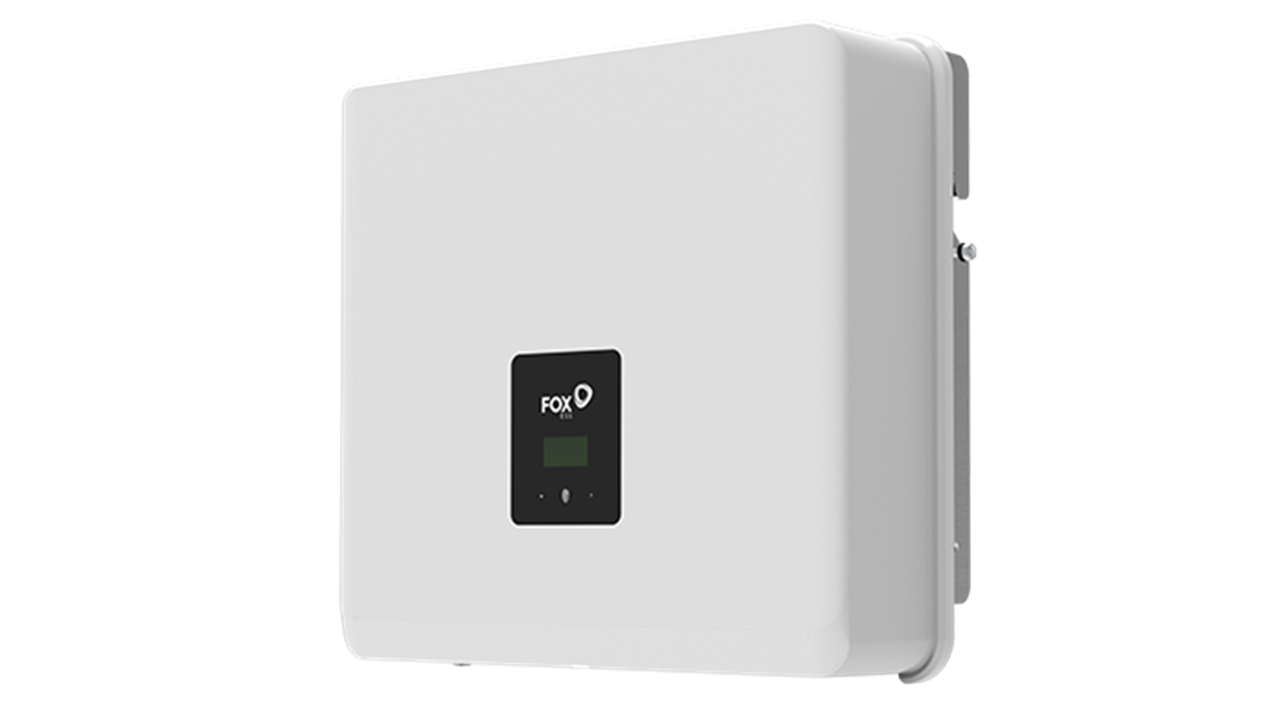

Fox ESS 3kW F Series (G3) 1PH Dual Tracker PV Inverter
#2 FE-F3000-G3
FE-F3000-G3 Datasheet
FE-F3000 User Manual
The FOX ESS F3000 G3 PV Inverter is a high-performance, single-phase solar inverter designed for residential and small commercial solar systems. With a rated output of 3,000W, dual MPPT tracking and battery-ready capability, it offers excellent flexibility, efficiency, and long-term reliability for modern solar installations.
Part of the Fox ESS F Series range (3.0–6.0kW), this inverter is engineered for easy upgrades and seamless integration with energy storage when paired with a Fox ESS charge controller.
Key Performance Features
High Efficiency & Power Optimisation
The F3000 G3 delivers up to 97.4% maximum efficiency, ensuring you extract the most energy possible from your PV system.
With a low start-up voltage and a wide MPPT voltage range, it performs exceptionally well even in low-light UK conditions.
Dual MPPT for Greater Yield
Featuring two independent MPPT trackers, this inverter allows multiple roof orientations or shading zones to operate efficiently, improving overall system yield and design flexibility.
Battery Ready for Future Expansion
Designed to be storage-ready, the F3000 G3 allows easy future upgrades to battery systems without replacing the inverter – making it a future-proof investment.
Installation & Durability
Fast and Simple Installation
The plug-and-play design enables quick installation and commissioning, reducing labour time and project costs.
IP65 Outdoor Rated
With a robust IP65-rated enclosure, the inverter is suitable for outdoor installation, offering protection against dust, rain, and harsh environmental conditions common across the UK.
Smart Monitoring & Control
Remote System Monitoring
Monitor your solar performance anytime via smartphone app or web portal. View energy production, system health, and performance trends in real time for complete peace of mind.
Technical Specifications
Electrical Ratings
-
Rated Power: 3,000 W
-
Max AC Power (5 min): 3,000 W
-
Surge AC Power (1 sec): 3,300 W
-
Max DC Power: 3,900 W
-
Max Input Voltage: 600 V
-
DC Startup Voltage: 120 V
-
DC Shutdown Voltage: 601 V
-
MPPT Voltage Range: 120 – 600 V
-
Max DC Current: 25 A
System Configuration
Efficiency & Build
Why Choose the FOX ESS F3000 G3?
✔ Optimised for UK solar conditions
✔ Battery-ready for future storage integration
✔ Compact, lightweight and easy to install
✔ Dual MPPT for higher energy yield
✔ IP65 rated for outdoor durability
✔ Smart monitoring included
![]()
![]()
![]()
