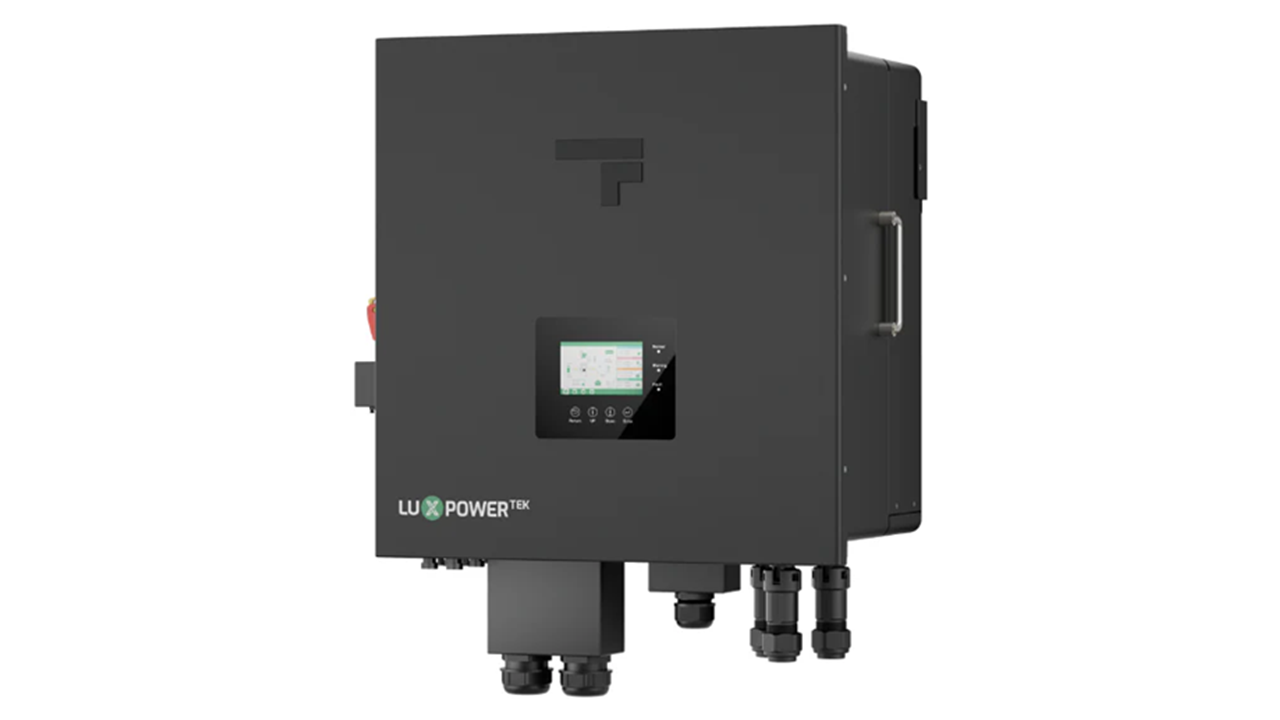

LuxPower GEN-LB-EU 10K Hybrid Inverter
High-power hybrid inverter with generator integration and full system flexibility
The LuxPower GEN-LB-EU 10K is a premium single-phase hybrid inverter designed for high-demand residential and light commercial installations. Combining solar PV, battery storage, grid supply, and generator backup in one unit, it delivers a powerful and flexible energy management solution.
With dual MPPT inputs, up to 15kW PV capacity, and an industry-leading 208A battery charge/discharge capability, this inverter is built to maximise solar generation, optimise energy usage, and ensure reliable backup power.
Key Features
- 10kW rated AC output
- Dual MPPT trackers for flexible system design
- Up to 15kW maximum PV input
- 208A maximum battery charge/discharge current
- Dedicated generator port with automatic control
- Time-of-use & weather-based optimisation
- Parallel capability (up to 10 units)
- On-grid & off-grid functionality
Build & Installation
Engineered for durability and easy installation in a wide range of environments:
- IP66-rated enclosure (indoor & outdoor use)
- Smart cooling system for stable operation
- Transformerless topology for higher efficiency
- Integrated touchscreen colour display
- RS485, Wi-Fi & CAN communication
- Noise level: ≤50dB
- Max operating altitude: 2000m
Physical Specifications:
- Dimensions: 536 × 566 × 290mm
- Weight: 42.64kg
- Operating temperature: -25°C to 60°C
- Humidity: 0–100%
- Warranty: 10 years
Battery & Power Performance
Optimised for high-performance 48V battery systems, delivering rapid charge and discharge capability:
- Nominal battery voltage: 48V
- Operating voltage range: 40–60V
- Max charge/discharge current: 208A
- Max charge/discharge power: 10,000W
- Force wake-up from PV supported
Ideal for fast charging during peak solar production or low-cost off-peak tariffs.
Efficiency & Protection
Advanced safety and protection features ensure reliable long-term operation:
- Max efficiency: 97.5%
- EU efficiency: 94.3%
- Charge/discharge efficiency: 94.0%
- Integrated DC isolator
- Type III AC/DC surge protection
- Anti-islanding protection
- Overcurrent & overvoltage protection
- AC short-circuit protection
- Leakage current protection
- Ground fault monitoring
- Grid monitoring
Certifications:
G99, G100, EN/IEC 62109-1/2, IEC 61683, EN 61000, EN 62920, IEC 62116, IEC 61727
AC Output & Grid Performance
Built to integrate seamlessly with standard UK single-phase systems:
- Rated AC voltage: 230V
- Frequency: 50 / 60Hz
- Rated AC output power: 10,000W
- Rated AC output current: 34.8A
- Max AC input power: 15,000W
- Continuous AC passthrough: 60A
- Adjustable power factor: 0.8 leading to 0.8 lagging
- Total harmonic distortion (THDi): <3%
Delivers clean, stable power for both residential and light commercial loads.
Solar (PV) Input Performance
Designed for large solar arrays and flexible string configurations:
- Max PV input power: 15,000W
- 2 independent MPPTs (2:2 configuration)
- MPPT voltage range: 120–550V
- Max PV input voltage: 600V
- Start-up voltage: 140V
- Max PV input current per MPPT: 25A
- Max PV short-circuit current per MPPT: 34A
- MPPT efficiency: 99.9%
Ideal for multi-orientation roofs, maximising energy yield throughout the day.
Why Choose the GEN-LB-EU 10K?
- Powerful 10kW hybrid inverter for demanding installations
- Industry-leading 208A battery performance
- Full generator integration for backup systems
- Scalable design for larger systems
- Fully compliant with UK grid standards (G99/G100)
- Suitable for on-grid, backup, and off-grid applications
The LuxPower GEN-LB-EU 10K delivers maximum performance, flexibility, and energy independence—making it an ideal choice for modern solar and battery storage systems.
