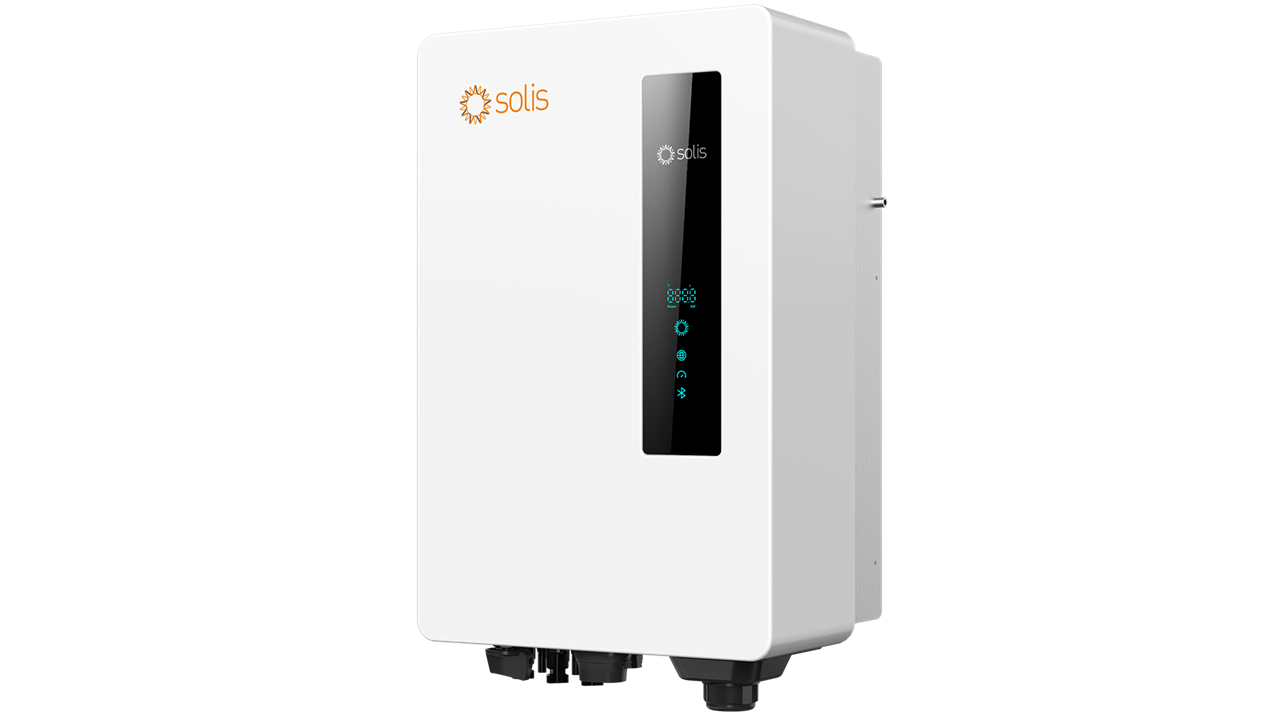

Solis inverter S6 8.0kW Triple MPPT - Single Phase with DC
#2: SOL-8.0-S6-TT-DC
Solis Warranty
The Solis SOL-8.0-S6-TT-DC PV Inverter is a powerful and efficient single-phase inverter designed for high-capacity residential and light commercial solar PV systems. With a rated output of 8,000W, it delivers outstanding energy conversion, advanced MPPT control, and flexible system design for demanding UK solar installations.
Developed by Solis, one of the world’s leading inverter manufacturers, this model combines cutting-edge research with proven field reliability.
Advanced Engineering & Global Expertise
Designed by a World-Class R&D Team
Solis inverters are engineered by an international team of professors and specialists from 8 countries, ensuring world-class product design, durability, and performance.
Proven Quality & Reliability
Praised globally for high quality and long-term reliability, Solis inverters are trusted in residential, commercial, and utility-scale projects worldwide.
High Performance & Energy Optimisation
Exceptional Conversion Efficiency
With a Euro efficiency of 97.3% and peak efficiencies exceeding 97%, this inverter ensures maximum usable energy from your solar array.
Precise MPPT Algorithm
The advanced MPPT control dynamically tracks the optimal operating point of your PV modules, maximising energy harvest throughout the day in changing UK weather conditions.
Ultra-Wide Voltage Range
Supporting a wide MPPT voltage range from 90V to 520V, this inverter offers excellent flexibility for array design and improved low-light performance.
Installation Flexibility & System Design
Triple DC Input for Complex Layouts
Featuring 3 DC inputs and 2 MPPTs, the SOL-8.0-S6-TT-DC allows for multiple string configurations, ideal for roofs with different orientations or shading zones.
Integrated Safety & Simplicity
The built-in DC switch enhances system safety and simplifies maintenance, while MC4 connectors ensure secure and reliable connections.
Technical Specifications
Electrical Ratings
-
Rated Power: 8,000 W
-
Max DC Power: 10,400 W
-
Max AC Power (5 min): 8,000 W
-
Surge AC Power (1 sec): 8,000 W
-
Max Input Voltage: 600 V
-
DC Startup Voltage: 120 V
-
DC Shutdown Voltage: 90 V
-
MPPT Voltage Range: 90 – 520 V
-
Max DC Current: 37.5 A
System Configuration
Efficiency & Physical Details
-
Euro Efficiency: 97.3%
-
Weight: 12.5 kg
-
Warranty: 5 Years
Why Choose the Solis SOL-8.0-S6-TT-DC?
✔ Ideal for large residential and light commercial systems
✔ High efficiency with precise MPPT tracking
✔ Flexible design with triple DC input
✔ Wide voltage range for superior performance
✔ Backed by world-class R&D and global reliability
✔ Excellent performance-to-cost ratio
