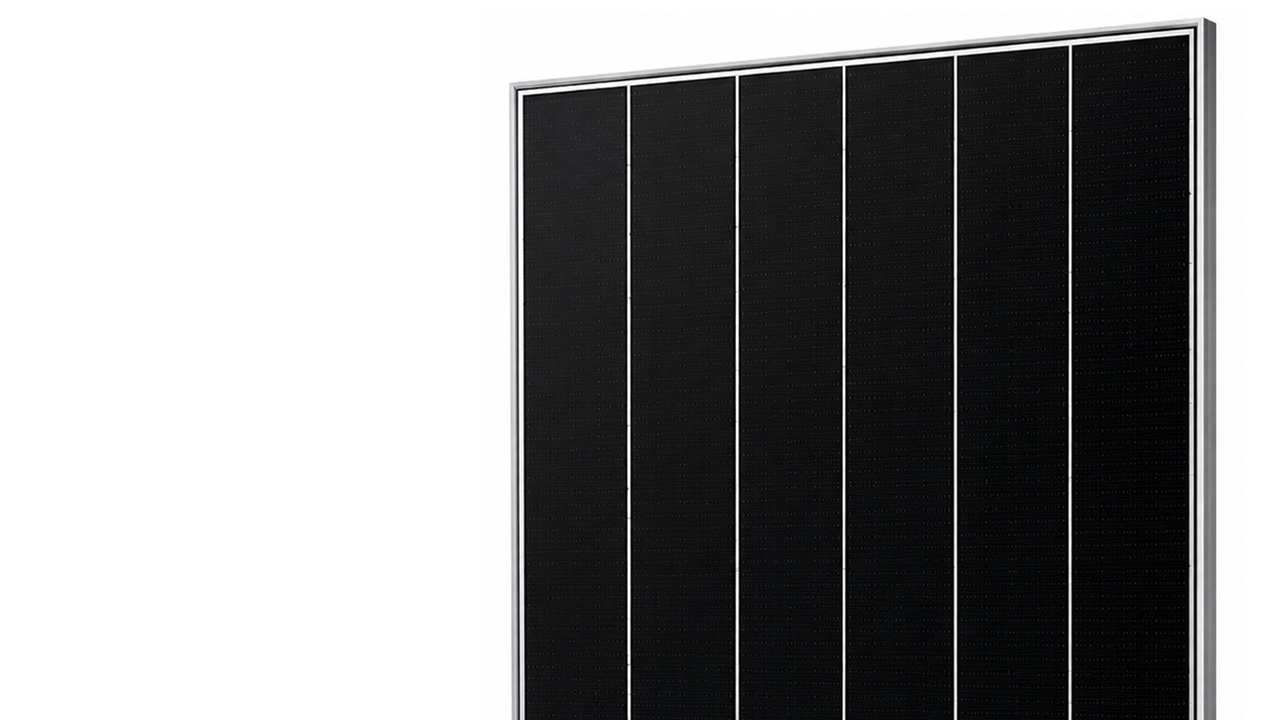

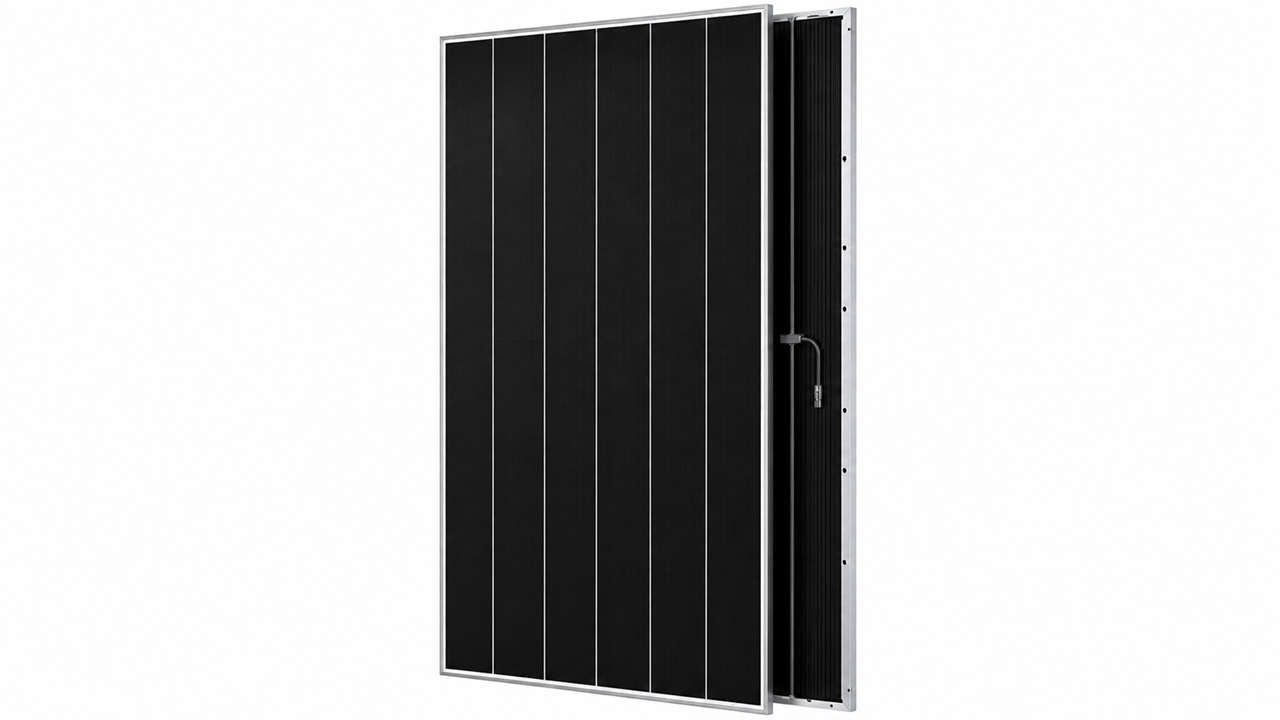

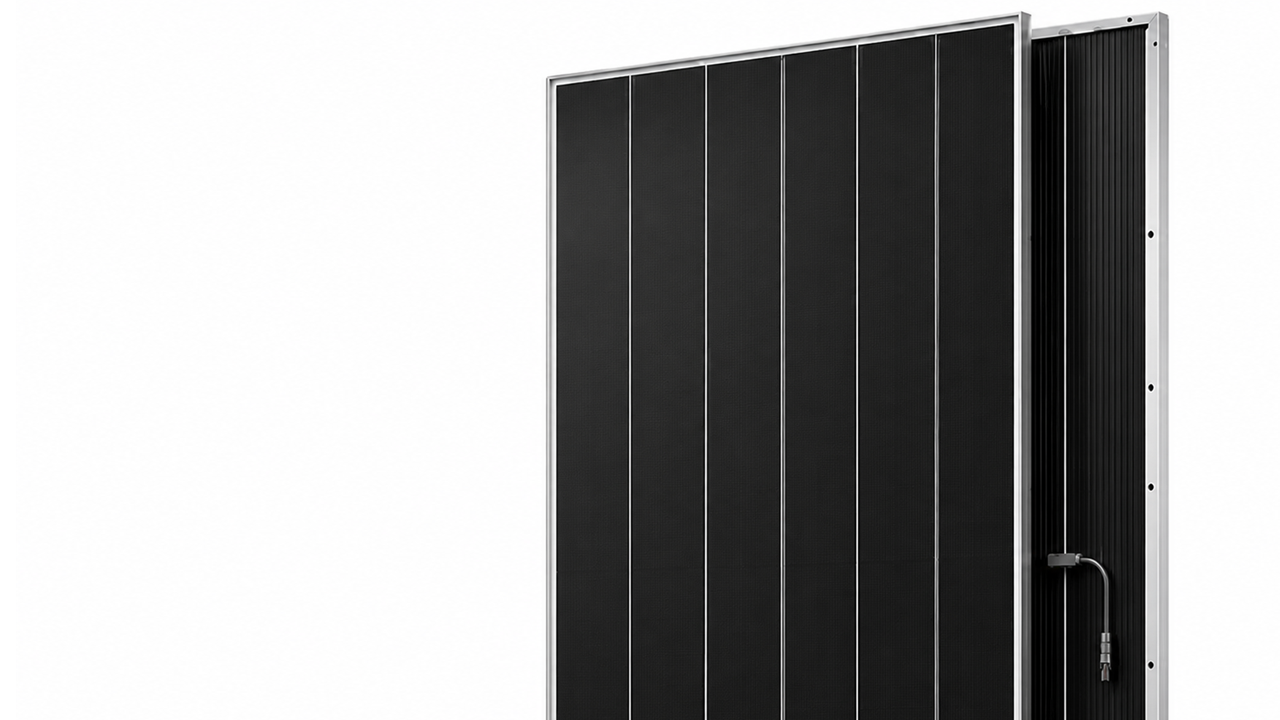

AIKO Stellar 3N+ 665W N-Type ABC Solar Panel – Silver Frame Dual Glass
#2: AIK-A-MDE72-665-SF-DG-01C
Aiko 665W Datasheet
Aiko 665W Installation Manual
Aiko 665W Warranty
Delivery: Due to the panel size and gap between the slats of the pallets either a fork lift truck is required on-site to offload these modules or they need to be hand lifted off by the customer.
Minimum order for this panel: 6 panels.
For orders with no minimum please visit our Single Panels page.
Explore Our Full Solar Panel Range
Browse our complete collection of high-performance solar panels [here].
Available for supply only or with professional installation. For a tailored system designed around your home and energy needs, simply complete our bespoke quote form [here].
Ultra-High Efficiency Commercial Solar Panel for Maximum ROI
The AIKO Stellar 3N+ 665W N-Type ABC Solar Panel is one of the most advanced high-power solar modules available, delivering exceptional performance, industry-leading efficiency, and long-term reliability for commercial, industrial, and large-scale solar installations.
Featuring AIKO's revolutionary N-Type ABC (All Back Contact) cell technology, this premium 665W solar panel achieves an outstanding 24.6% module efficiency, helping installers, developers, and investors maximise energy generation while reducing balance-of-system costs and accelerating return on investment.
Built with a robust dual-glass construction, the AIKO Stellar 3N+ offers enhanced durability, superior resistance to environmental stress, and long-term energy production backed by industry-leading warranties.
Key Features & Benefits
- 665W High Power Output
- 24.6% Module Efficiency
-
Advanced N-Type ABC Cell Technology
-
Durable Dual Glass Construction
-
Elegant No-Busbar Design
- Cell-Level Partial Shade Optimisation
-
Outstanding Temperature Coefficient of -0.26%/°C
- Enhanced Micro-Crack Resistance
- High-Temperature Restriction for Improved Fire Safety
-
Maximum System Voltage: 1500V DC
- Suitable for Commercial, Industrial & Utility-Scale Projects
-
Includes 1200mm Landscape Cable
-
Supplied with 01C Connector
Why Choose the AIKO Stellar 3N+ 665W Solar Panel?
The AIKO Stellar range has earned worldwide recognition for innovation, efficiency and sustainability. AIKO received the prestigious Intersolar Innovation Award 2023, Red Dot Design Award 2023, and recognition for ESG Transparency in 2024.
Unlike conventional solar panels, AIKO's proprietary ABC (All Back Contact) architecture eliminates front-side busbars, allowing more sunlight to reach the active cell surface. The result is higher efficiency, improved aesthetics, and increased energy yield throughout the system's lifetime.
The panel's industry-leading partial shade optimisation technology allows individual cells to continue operating more effectively when shading occurs, helping to reduce generation losses compared to traditional module designs.
Performance & Reliability
Designed for long-term energy production, the AIKO Stellar 3N+ combines cutting-edge N-Type cell technology with dual-glass protection to deliver outstanding reliability in demanding environments.
-
Product Warranty: 15 Years
-
Performance Warranty: 30 Years
- Superior degradation resistance
- Enhanced durability against micro-cracking
- Improved thermal performance for higher energy yields
Technical Specifications
| Specification |
Value |
| Manufacturer |
AIKO |
| Model |
AIK-A-MDE72-665-SF-DG-01C |
| Rated Power |
665W |
| Module Efficiency |
24.6% |
| Cell Technology |
N-Type ABC |
| Construction |
Dual Glass |
| Frame |
Silver Frame |
| Maximum System Voltage |
1500V DC |
| Voltage at Maximum Power (Vmpp) |
45.6V |
| Current at Maximum Power (Impp) |
14.59A |
| Open Circuit Voltage (Voc) |
54.35V |
| Short Circuit Current (Isc) |
15.28A |
| Temperature Coefficient (Pmax) |
-0.26%/°C |
| Dimensions |
2382 x 1134 x 30mm |
| Weight |
33.5kg |
| Connector Type |
MC4 |
| MCS Reference |
MR 50677721 0001/1110 |
|
|
Ideal Applications
The AIKO Stellar 3N+ 665W Solar Panel is ideal for:
- Commercial rooftop solar installations
- Industrial solar projects
- Agricultural buildings
- Large-scale ground-mounted systems
- Solar farms
- High-performance investor-led renewable energy projects
With market-leading efficiency, advanced shade optimisation, exceptional durability and a 30-year performance warranty, the AIKO Stellar 3N+ 665W N-Type ABC Solar Panel is an outstanding choice for installers and developers seeking maximum energy production and long-term value.
