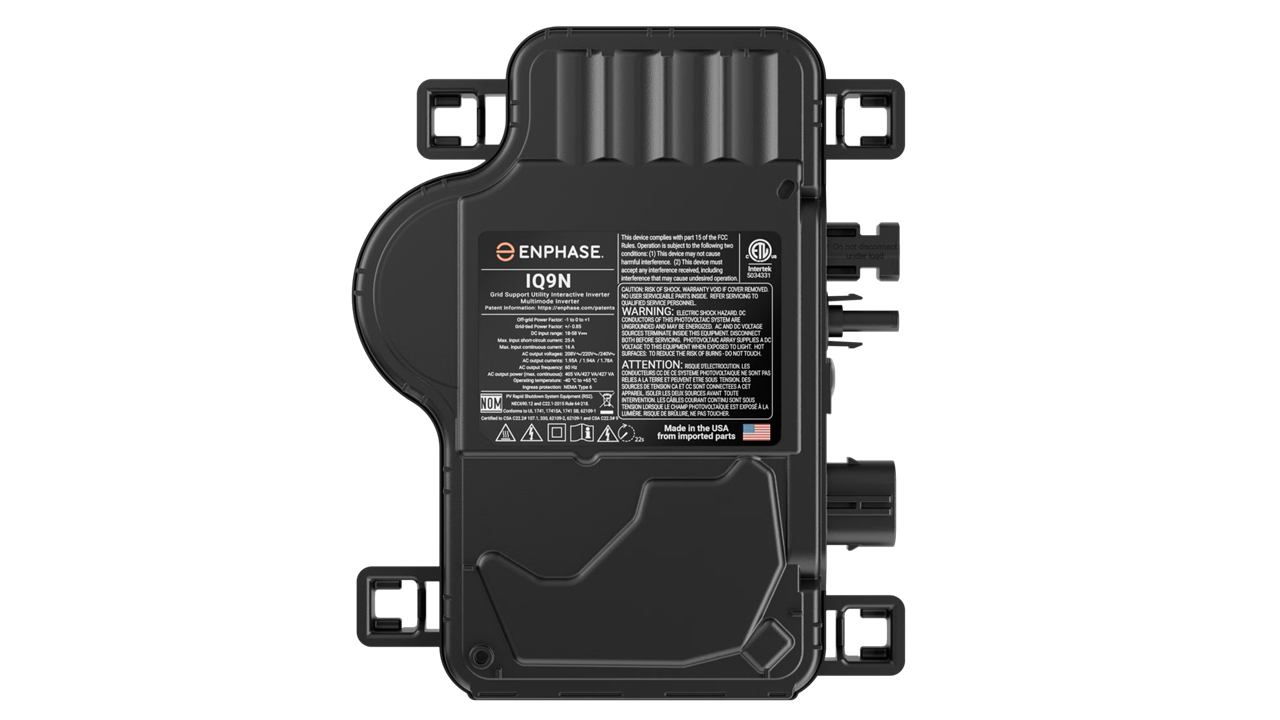

Enphase IQ9N Microinverter

Power your solar installation with the Enphase IQ9N Microinverter, engineered for the latest generation of high-output solar panels. Delivering exceptional efficiency, advanced safety features, and industry-leading reliability, the IQ9N is the ideal solution for both new installations and expanding existing Enphase systems.

Key Features

• Supports PV modules up to 600W before clipping begins
• 97.95% peak efficiency for maximum energy harvest
• Compatible with most modern solar panels (up to 60V input)
• Integrated Stäubli MC4 connectors for quick installation
• Rapid Shutdown for enhanced fire safety compliance
• IP67 weatherproof rating for long-term outdoor durability
• Compatible with existing Enphase IQ7 and IQ8 installations
• 25-Year Warranty when installed with an internet-connected IQ Gateway

High Performance for Modern Solar Panels

The IQ9N has been specifically developed to maximise the output of today's high-power photovoltaic modules. Supporting solar panels up to 600W DC input, it delivers outstanding energy production while maintaining excellent conversion efficiency of 97.95%.

Its advanced MPPT technology continually tracks the optimum operating point of each panel, helping maximise energy yield even when modules are affected by shading, dirt or varying roof orientations.

Fast & Simple Installation

Designed with installers in mind, the IQ9N is compact, lightweight and easy to fit.

Features include:

• Integrated Stäubli MC4 DC connectors
• Simple plug-and-play IQ AC cabling
• Compact design (214 × 176 × 30.8mm)
• Lightweight construction (1.1kg)
• Faster firmware updates using the latest integrated circuit technology

The result is quicker installation times and reduced labour costs.

Proven Enphase Reliability

Enphase microinverters are renowned for long-term reliability, and the IQ9N continues this tradition.

Benefits include:

• Over 1 million hours of reliability testing
• Advanced Burst Mode™ technology for improved low-light energy production
• Low-voltage DC architecture for enhanced safety
• Integrated Rapid Shutdown functionality
• Fully sealed IP67 enclosure for harsh outdoor environments

Flexible System Compatibility

The IQ9N works with virtually all modern PV module technologies provided the panel remains within the inverter's electrical limits:

• Maximum DC input power: 600W
• Maximum input voltage: 60V
• MPPT operating range: 28–45V
• Start-up voltage: 21V

It can be added to existing IQ7 or IQ8 systems using the same IQ Gateway, making it easy to expand an existing Enphase installation without replacing your current equipment.

Please Note:

• IQ9N microinverters can be added to existing IQ7 or IQ8 systems.
• IQ7 or IQ8 microinverters cannot be added to installations already using IQ9N microinverters on the same IQ Gateway.
• Where the combined peak PV output exceeds Enphase off-grid design limits (150% with mixed IQ7/IQ8/IQ9N systems or 200% with IQ8/IQ9N systems), PV shedding must be implemented for off-grid operation.

Refer to the Enphase compatibility calculator and technical datasheet to verify panel compatibility.

Technical Specifications

Why Choose the Enphase IQ9N?

The Enphase IQ9N combines industry-leading efficiency, premium reliability and intelligent panel-level optimisation into one compact microinverter. Whether you're installing a new solar PV system or expanding an existing Enphase installation, the IQ9N delivers greater energy production, simplified installation and exceptional long-term performance, all backed by a 25-year manufacturer's warranty.
