Fogstar Energy 15.5kWh/16.1kWh IP65 Wall Mount

Fogstar Energy 15.5kWh / 16.1kWh Battery Wall Mount Bracket

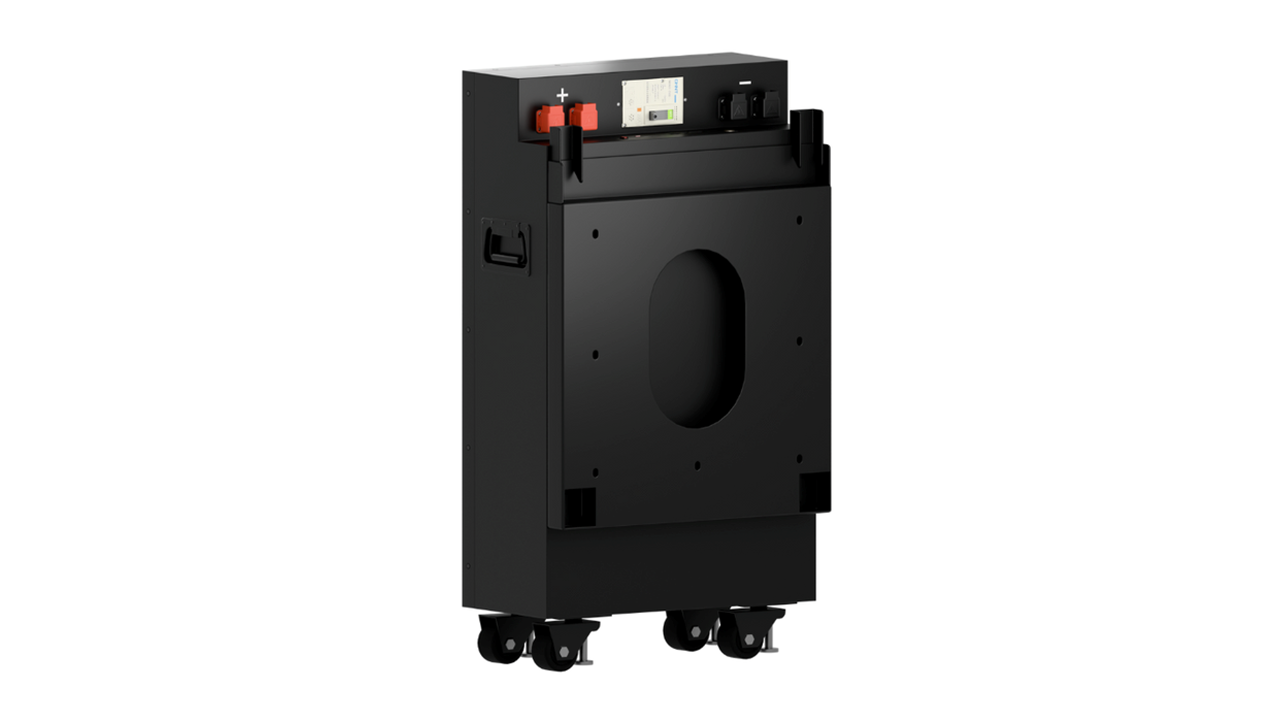

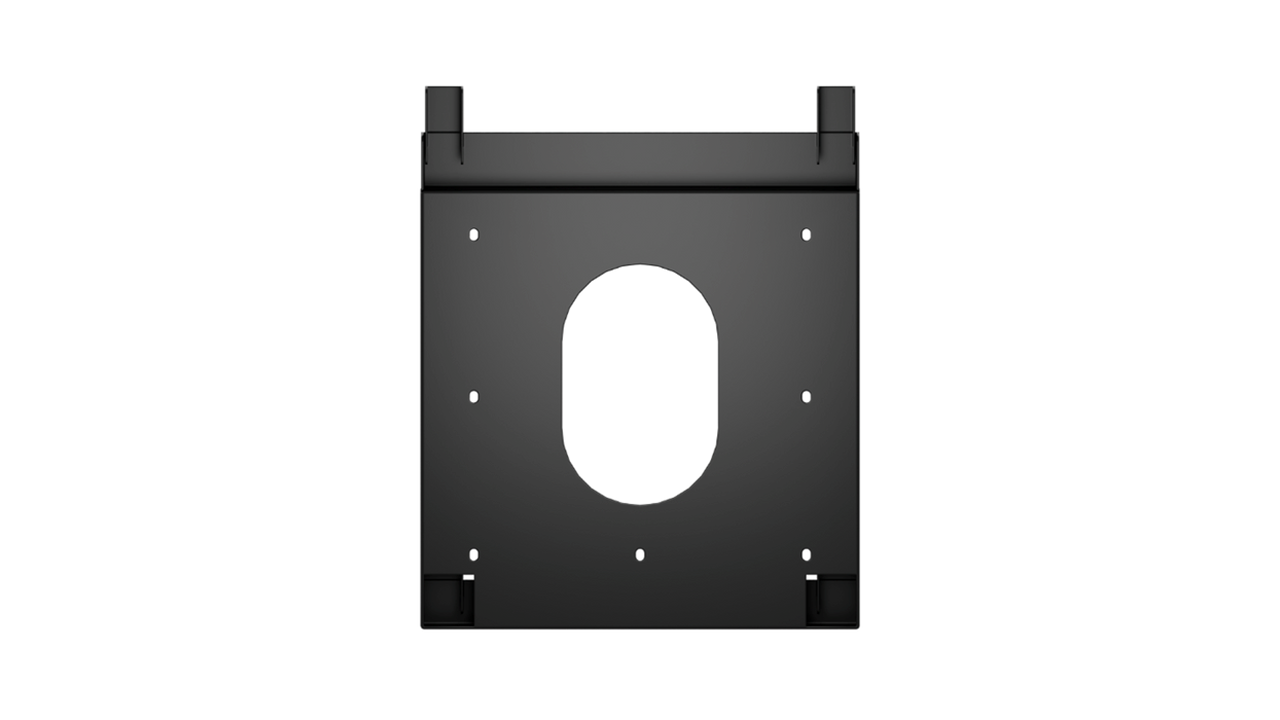

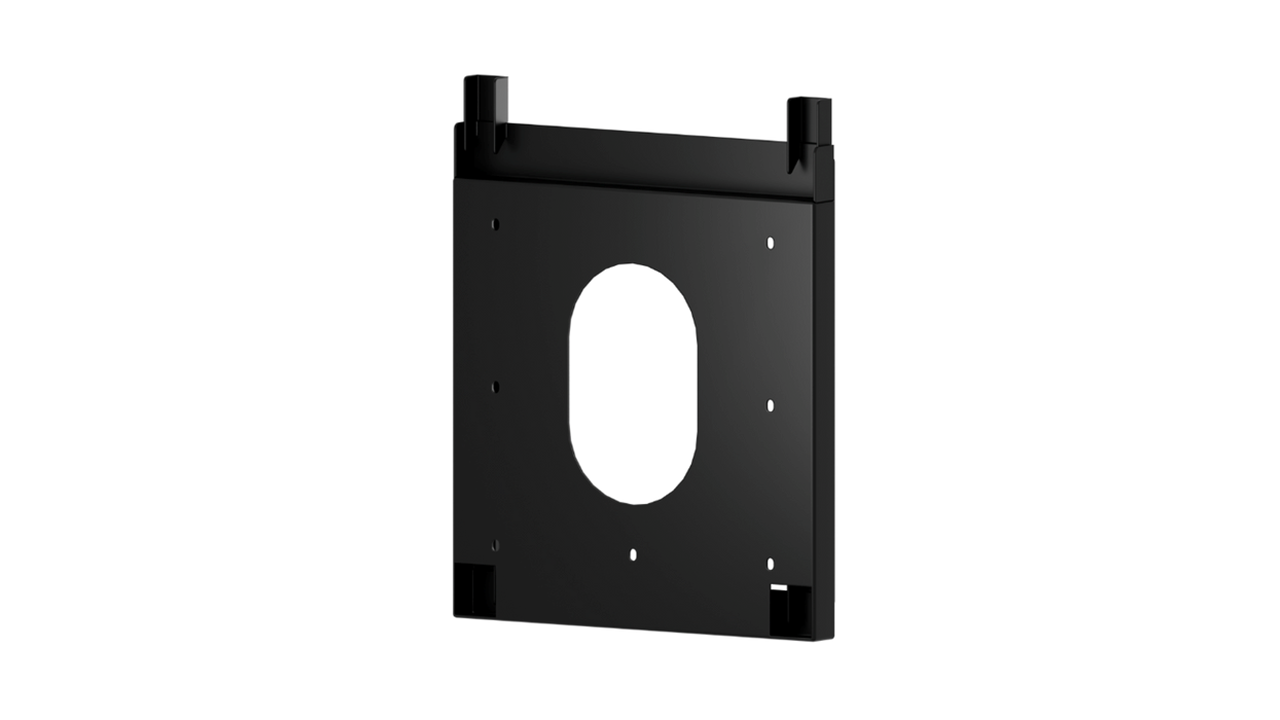

The Fogstar Energy Wall Mount Bracket is a heavy-duty mounting solution designed to securely wall-mount compatible Fogstar Energy 15.5kWh and 16.1kWh 48V batteries. Constructed from galvanised steel with a durable black finish, this purpose-built bracket helps free up valuable floor space while providing a robust mounting platform.

Due to the substantial weight of the battery, careful assessment of the supporting wall and professional installation are strongly recommended.

Heavy-Duty Wall Mounting Solution

Durable Galvanised Steel Construction

Manufactured from heavy-duty galvanised steel and finished in black, the bracket is designed for strength, durability, and a professional appearance when installed alongside a Fogstar Energy battery system.

Compatible with Fogstar Energy Batteries

The bracket is designed to accommodate both:

• Fogstar Energy 15.5kWh 48V Battery
• Fogstar Energy 16.1kWh 48V Solar Battery

Its purpose-built design provides a dedicated mounting solution for compatible Fogstar Energy battery models.

Save Valuable Floor Space

Secure Wall-Mounted Battery Installation

Wall mounting can help maximise available floor space in energy storage installations while providing a dedicated location for the battery.

However, wall mounting is not suitable for every installation. The supporting structure must be capable of safely carrying the combined weight of the battery and mounting bracket.

Important Installation & Safety Information

Professional Installation Recommended

The compatible battery can weigh approximately 140kg, making professional installation by a suitably qualified contractor or structural engineer strongly recommended.

Assess the Wall Structure Before Installation

The wall must be assessed to determine whether it can safely support the battery and bracket. Consideration should be given to the construction and condition of the wall, including:

• Concrete
• Brick
• Timber or wood stud
• Drywall
• Other structural wall types

Additional reinforcement, such as doubled-up studs or support beams, may be required depending on the installation.

Use Appropriate Wall Fixings

Fixings are not included because the correct fixing method depends on the specific wall construction. Only use fixings suitable for the wall type and the weight being supported.

Incorrect fixings or inadequate structural support could result in serious property damage, battery damage, or injury.

Important Weight Consideration

The approximately 140kg battery weight represents a substantial load. A thorough structural assessment should be completed before proceeding with a wall-mounted installation.

The purchaser is responsible for ensuring that the wall can safely support the battery and bracket and that installation is carried out appropriately.

Package Contents

Included in the Box

• 1 × Heavy-duty Fogstar Energy wall mount bracket

Fixings are not included and must be selected according to the specific wall construction and installation requirements.

Technical & Compatibility Information

Product Compatibility

• Compatible Battery: Fogstar Energy 15.5kWh / 16.1kWh
• Battery Type: 48V Energy Storage Battery
• Mounting Type: Wall Mount
• Bracket Material: Galvanised Steel
• Finish: Black
• Battery Weight: Approximately 140kg

Why Choose the Fogstar Energy Wall Mount?

✔ Purpose-built for compatible Fogstar Energy 15.5kWh and 16.1kWh batteries
✔ Heavy-duty galvanised steel construction
✔ Durable black finish
✔ Helps free valuable floor space
✔ Dedicated wall-mounting solution for battery storage systems
✔ Fixings can be selected to suit the specific wall construction
✔ Professional installation and structural assessment recommended for safety
