Smart hybrid inverter set to the size required for G99. Once set upon installation this can't be changed
#12: INV-LUX-GEN3-6KW-SPH-BLK
Luxpower Hybrid Data Sheet
Luxpower Hybrid Manual
*Please note: Stock is supplied direct from Fogstar and a minimum of 4 business days is required for mainland UK delivery from when stock is available to dispatch. The calendar at checkout can not be used to book the delivery date for Fogstar/Lux products
Next-generation single-phase hybrid inverter with dual MPPTs, high-current 48V battery support, generator integration and fast backup switching.

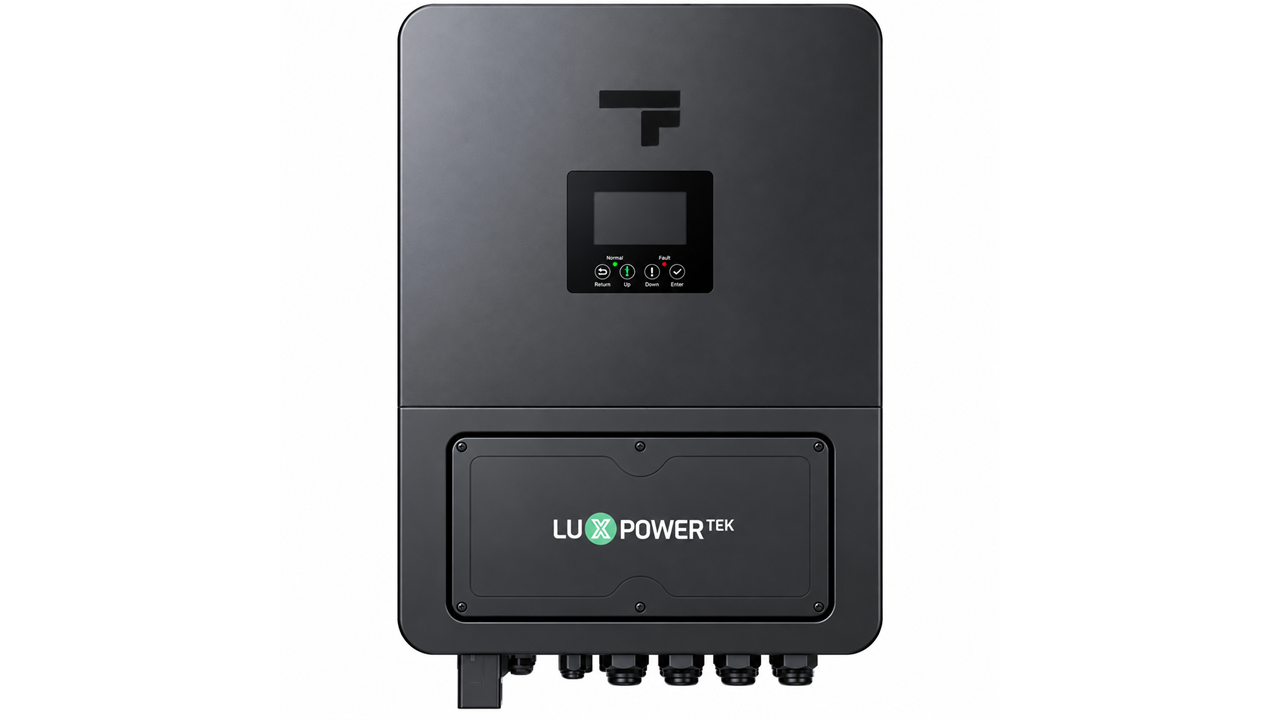

The Fogstar-LuxpowerTek GEN3-LB-EU is a next-generation single-phase 230V hybrid inverter range, engineered for seamless integration with Fogstar 48V (51.2V) battery systems.
Available in 3kW, 3.6kW, 4kW, 4.6kW, 5kW and 6kW models, the GEN3 provides a flexible solution for residential solar and battery storage systems, allowing the inverter capacity to be matched to the requirements of the property.
Designed for both on-grid and off-grid operation, the GEN3 combines up to 12kW of solar PV input, dual independent MPPTs and up to 125A battery charge and discharge current with rapid 7ms backup switching.
Generator integration, parallel operation for up to 16 units and a robust IP66-rated enclosure make the GEN3 a highly flexible platform for modern home energy storage.
Available with warranty coverage of up to 10 years for long-term confidence and peace of mind.
The GEN3-LB-EU has been configured around 48V low-voltage battery storage, making it an ideal partner for Fogstar Energy battery systems.
High-current battery support provides strong charging and discharging performance whether energy is being supplied by solar PV, off-peak grid electricity or a connected generator.
With two independent MPPTs, the GEN3 offers flexible solar array design and allows strings on different roof orientations to be independently optimised.
The independent MPPT design is particularly useful for properties with east/west arrays, different roof pitches or partially separated PV arrays, allowing each string to operate independently for improved solar harvesting.
Integrated generator support provides an additional source of energy when required, making the GEN3 suitable for both conventional grid-connected installations and systems requiring greater energy resilience.
With generator input of up to 12kW, the inverter can intelligently manage power from solar PV, batteries, the grid and a generator within a single energy-storage system.
The GEN3 is designed to maintain power during a grid outage with a rapid 7ms switching time.
Combined with double-rated surge capability for up to one second, this provides additional support for appliances and equipment with higher start-up demands.
For installations requiring greater capacity, the GEN3 supports up to 16 units operating in parallel.
This allows the system to be expanded beyond the output of a single inverter and provides additional flexibility for larger residential and energy-storage applications.
Designed with installers and long-term reliability in mind, the GEN3 combines a compact enclosure with comprehensive communication and monitoring options.
Dimensions: 416 × 538.5 × 229.5mmWeight: 22.5kgWarranty: 5 / 10 years
The Fogstar x LuxpowerTek GEN3-LB-EU range is designed to meet relevant UK and European grid and electrical safety requirements, including:
EN 62109-1/-2, EN 61000, EN 50549-1/-10, G99 and G100.
The Fogstar x LuxpowerTek GEN3-LB-EU brings together solar generation, battery storage, backup power and generator integration within one powerful residential energy-management platform.
With six inverter sizes from 3kW to 6kW, dual MPPTs, up to 12kW PV input, 125A battery charging, 7ms backup switching and support for up to 16 units in parallel, the GEN3 provides a flexible and scalable foundation for high-performance home energy storage.
