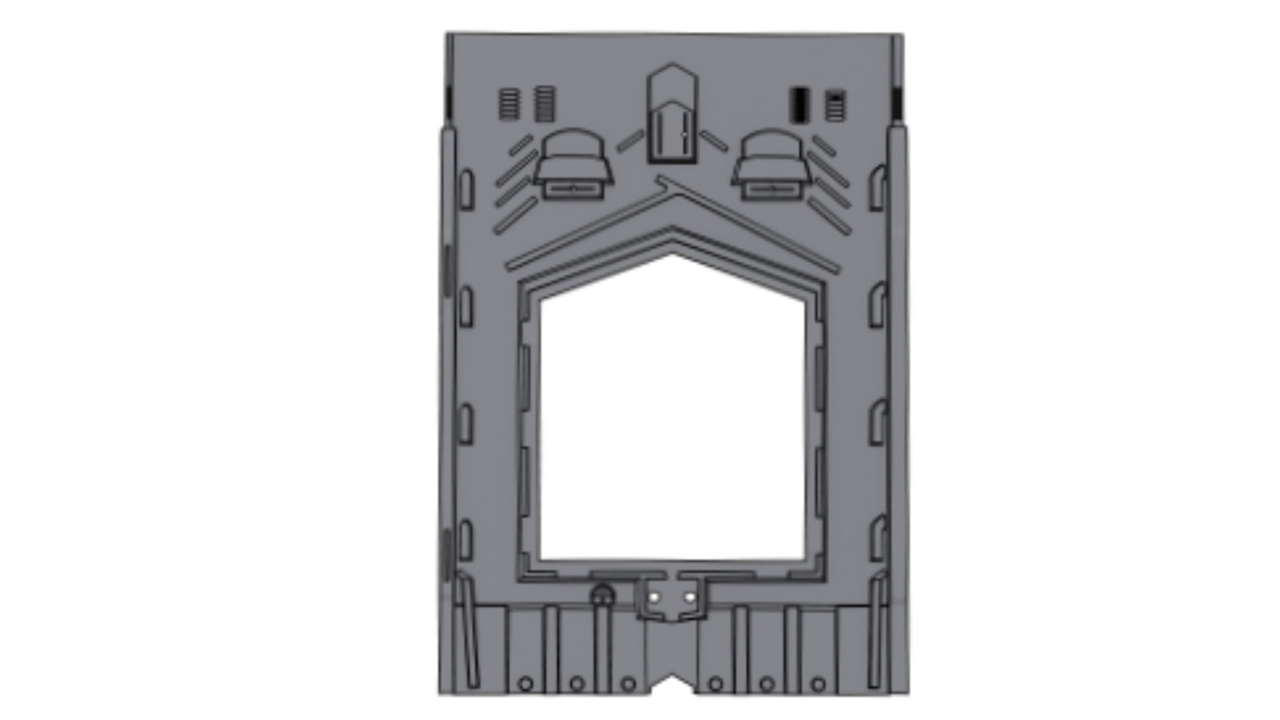

GSE Landscape 1760-1090
- #2: 7841 Mounting - In Roof
GSE Landscape Data Sheet
GSE Landscape Manual
GSE MCS
The GSE Integration Half Frame Tray system offers a fast, secure, and professional solution for integrated solar PV roof installations. Designed for quick assembly and long-term durability, each module consists of two interlocking half-frame tray sections that create a weatherproof mounting platform directly within the roof structure.
Please Note:
This listing is for one half-frame tray only. Two halves are required per solar panel/module installation.
Fast & Simple Roof-Integrated Solar Installation
The GSE in-roof mounting system is engineered for rapid installation and a clean, low-profile finish. Lightweight interlocking plastic trays are fixed directly to roof battens, allowing roof tiles to fit neatly up to the integrated flashing system for a sleek, weather-resistant appearance.
Once installed, solar panels simply hook onto the trays and are securely clamped into position, significantly reducing installation time compared to traditional mounting systems.
Ideal for:
- Residential solar installations
- New build solar projects
- Retrofit roof-integrated PV systems
- MCS-compliant solar installations
Flexible Panel Compatibility
We stock a range of popular tray sizes suitable for many modern solar modules, with additional sizes available to order.
Compatible Solar Panel Dimensions
Supported Module Sizes
-
Minimum Panel Length: 1761mm
-
Maximum Panel Length: 1765mm
-
Minimum Panel Width: 1090mm
-
Maximum Panel Width: 1150mm
Please refer to the "Tell Me More" section for full panel tolerance information.
Key Features
- Quick-fit interlocking tray system
- Lightweight construction: only 2.8–3.7kg/m²
- Suitable for roof pitches from 12° to 60°
- Professional low-profile integrated finish
- Compatible with a wide range of solar panels
- MCS certified
- Durable and weather-resistant design
- Simplifies solar panel installation
- Reduces installation time and labour costs
Product Specifications
| Specification |
Details |
| Product Number |
ART106310 |
| Weight |
2.8–3.7kg/m² |
| Roof Pitch Compatibility |
12°–60° |
| Certification |
KIWA00041/011 IK |
| Installation Type |
Roof-Integrated Solar PV |
| Material |
High-durability engineered plastic |
Perfect for installers and roofing professionals looking for a reliable, MCS-compliant in-roof solar mounting solution with fast installation and excellent aesthetics.
