IMO 40A 600V Enclosed DC Isolator Switch for PV Installs
#3: 4570
The IMO SI40-PEL64R-2 DC Isolator is a robust, high-performance isolation switch designed specifically for Solar PV installations, providing safe and reliable disconnection of DC circuits between the solar array and inverter.
IMO's advanced switching mechanism uses a spring-assisted snap-action design, allowing the contacts to open rapidly when the handle is operated. This fast switching action helps suppress the electrical arc created when interrupting a constant DC load, with the arc typically extinguished within 3 milliseconds.

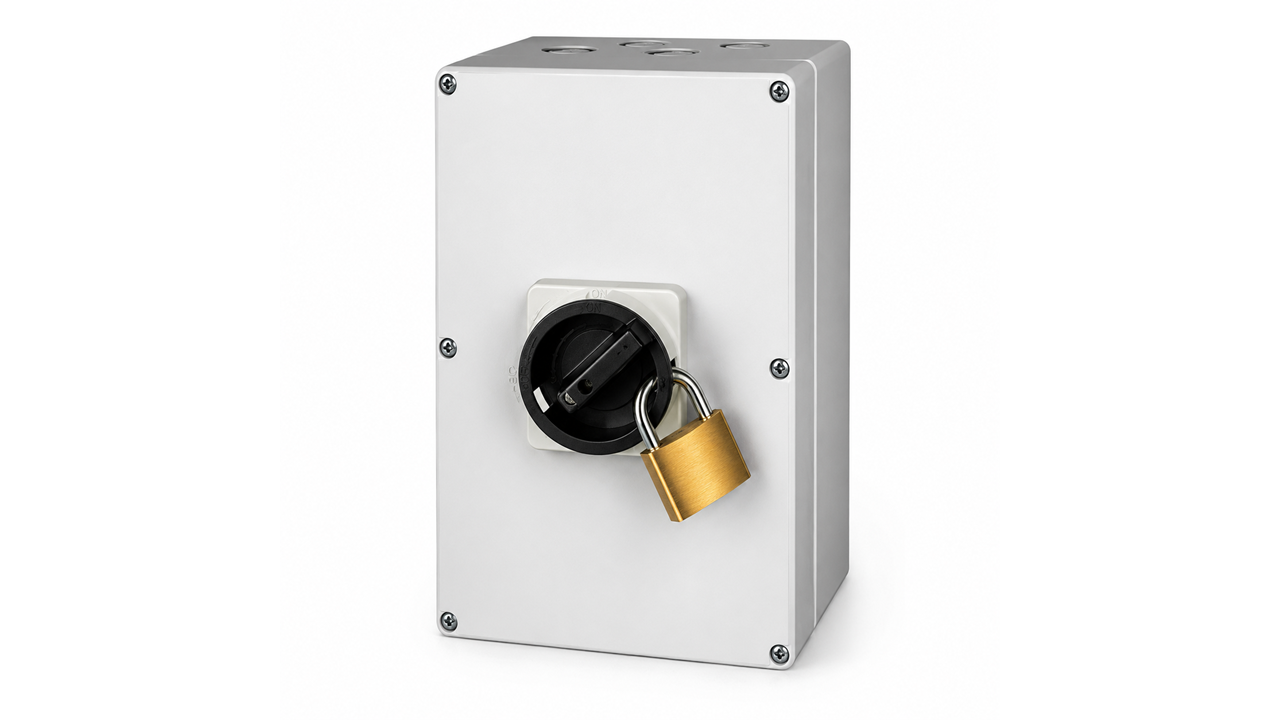

For additional safety during installation, servicing and maintenance, the rotary handle can be padlocked in the OFF position, preventing accidental reconnection while work is being carried out on the inverter or PV system.
Built for demanding indoor and outdoor environments, the enclosure carries both IP66 and NEMA 4X ratings, providing excellent protection against dust, water and harsh weather conditions.
Key Features
-
Rated Current: 40A
-
Rated Insulation Voltage: 600V
-
Number of DC Poles: 2
- Designed for Solar PV DC isolation
- Rapid spring-assisted switching mechanism
- Arc suppression typically within 3ms
-
Padlockable OFF position for safe maintenance
-
IP66 rated enclosure
- NEMA 4X rated
- Suitable for indoor and outdoor installations
- 5-year warranty
Dimensions
240 × 176 × 156mm
Product Details
Manufacturer: IMO
Product Code: SI40-PEL64R-2
Product Type: Solar PV DC Isolator
Current Rating: 40A
Voltage Rating: 600V
Poles: 2
The IMO 40A 600V 2 Pole DC Isolator provides a dependable solution for safely isolating Solar PV DC circuits, combining rapid switching, secure lock-off functionality and a weather-resistant enclosure for professional residential and commercial PV installations.
