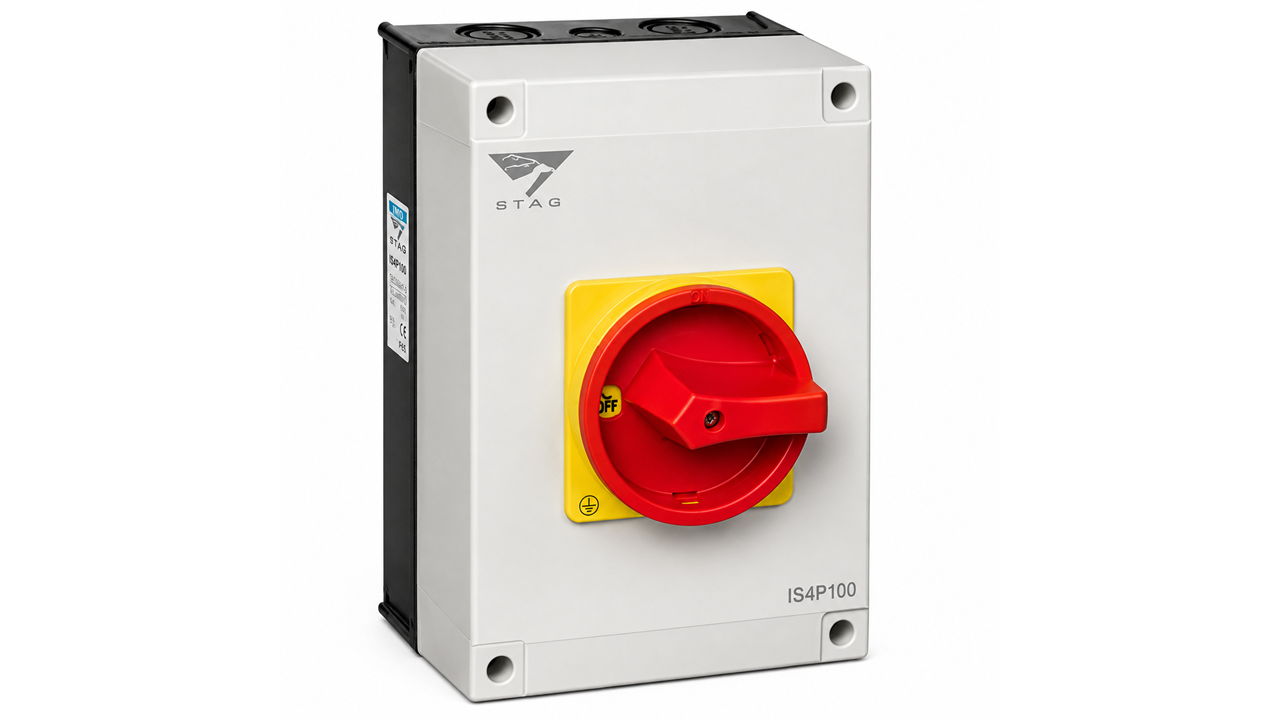

IMO Stag 100A AC Isolator 4-pole

#3: 4559

Kraus & Naimer AC Switch

The IMO Stag 100A 4-Pole AC Isolator is a robust enclosed switch disconnector designed for safe isolation of AC electrical circuits rated up to 100A.

Featuring a durable IP65-rated enclosure, the isolator provides protection against dust and water ingress, making it suitable for both indoor and outdoor installations. The lockable rotary handle can be secured in the OFF position, helping prevent accidental re-energisation while maintenance or electrical work is being carried out.

Designed in accordance with EN 60947-3, the unit also features a flame-retardant enclosure and an additional earth connection for a safe, professional installation.

Key Features

• 100A rated AC isolator
• 4-pole configuration
• Suitable for circuits up to 415V AC
• IP65-rated enclosure
• Lockable rotary isolation handle
• Handle can be secured in the OFF position
• Flame-retardant construction
• Additional earth connection
• EN 60947-3 compliant
• Suitable for indoor and outdoor installations
• Robust enclosed design

Technical Specification

• Product Type: Enclosed AC Switch Isolator
• Poles: 4 Pole
• Rated Current: 100A
• Rated Voltage: 415V AC
• Rated Insulation Voltage: 690V
• Rated Isc Current: 2000A
• Protection Rating: IP65
• Dimensions: 240 × 160 × 120mm
• Handle: Lockable rotary handle
• Compliance: EN 60947-3
• Earth Connection: Additional earth connection
• Enclosure: Flame-retardant

Applications

Ideal for use as a local AC isolation point for solar PV systems, battery storage systems, inverters and other electrical equipment where a secure, accessible means of isolation is required.
