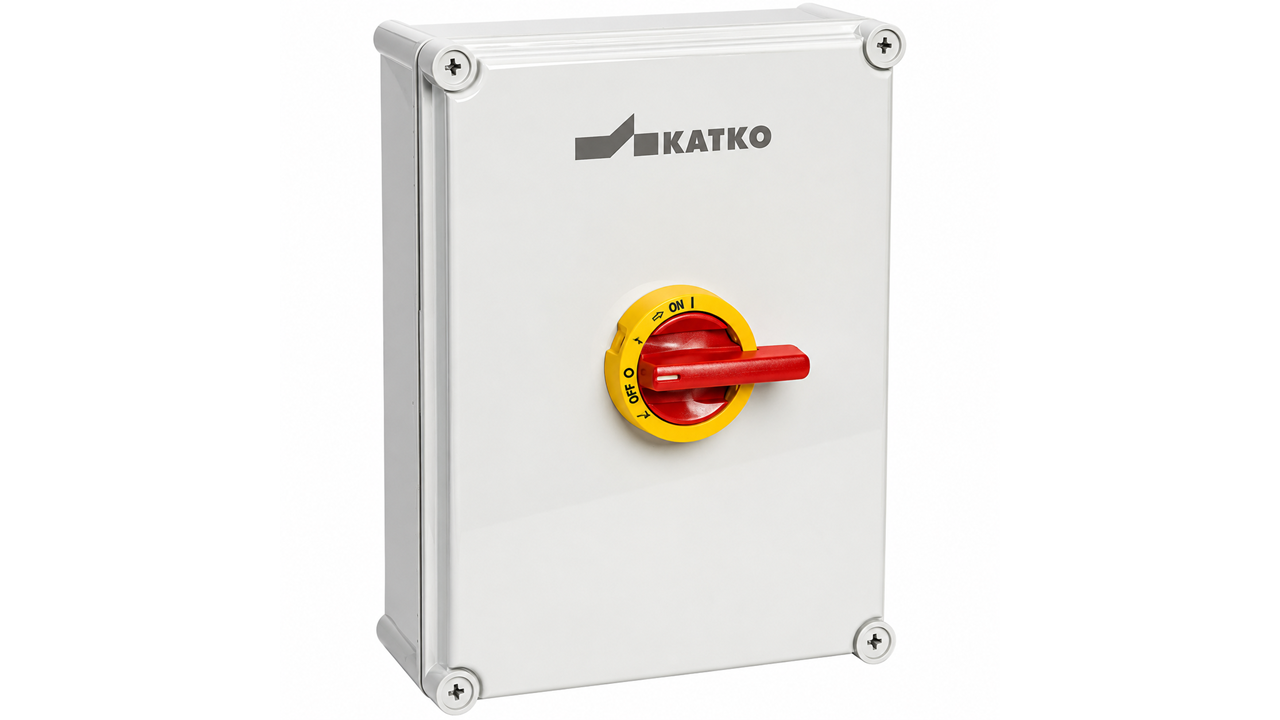

Katko 250A 4-Pole AC Isolator – IP65

#3: 7971

The Katko 250A 4-Pole AC Isolator is a heavy-duty enclosed switch disconnector designed for high-current electrical applications, making it particularly suitable for larger commercial solar PV, battery storage and three-phase electrical systems.

With a rated current of 250A, the isolator is housed within a durable polycarbonate MF11 enclosure offering IP65 protection. The enclosure provides excellent electrical insulation together with resistance to UV radiation and many chemicals, allowing reliable operation in demanding indoor and outdoor environments.

Designed with safety in mind, the Katko isolator incorporates self-extinguishing materials, a secure door interlocking mechanism with defeat facility, and a padlockable rotary handle to help prevent unauthorised or accidental operation during maintenance.

Key Features

• Heavy-duty 250A AC isolator
• 4-pole configuration
• Ideal for larger commercial PV and electrical installations
• IP65-rated enclosure
• Durable polycarbonate construction
• Suitable for indoor and outdoor applications
• UV-resistant enclosure
• Resistant to many chemicals
• High level of electrical insulation
• Self-extinguishing materials
• Door interlocking safety mechanism
• Interlock defeat facility for authorised access
• Padlockable rotary handle
• Robust design for high-current applications

Technical Specification

• Manufacturer: Katko
• Product Code: KEM 4250C YR MF11
• Rated Current: 250A
• Number of Poles: 4
• Protection Rating: IP65
• Enclosure: MF11
• Enclosure Material: Polycarbonate
• Dimensions: 380 × 280 × 130mm

Important Note

This isolator does not include terminal covers, phase barriers, screws, nuts or bolts. These components must be sourced separately where required for the installation.
