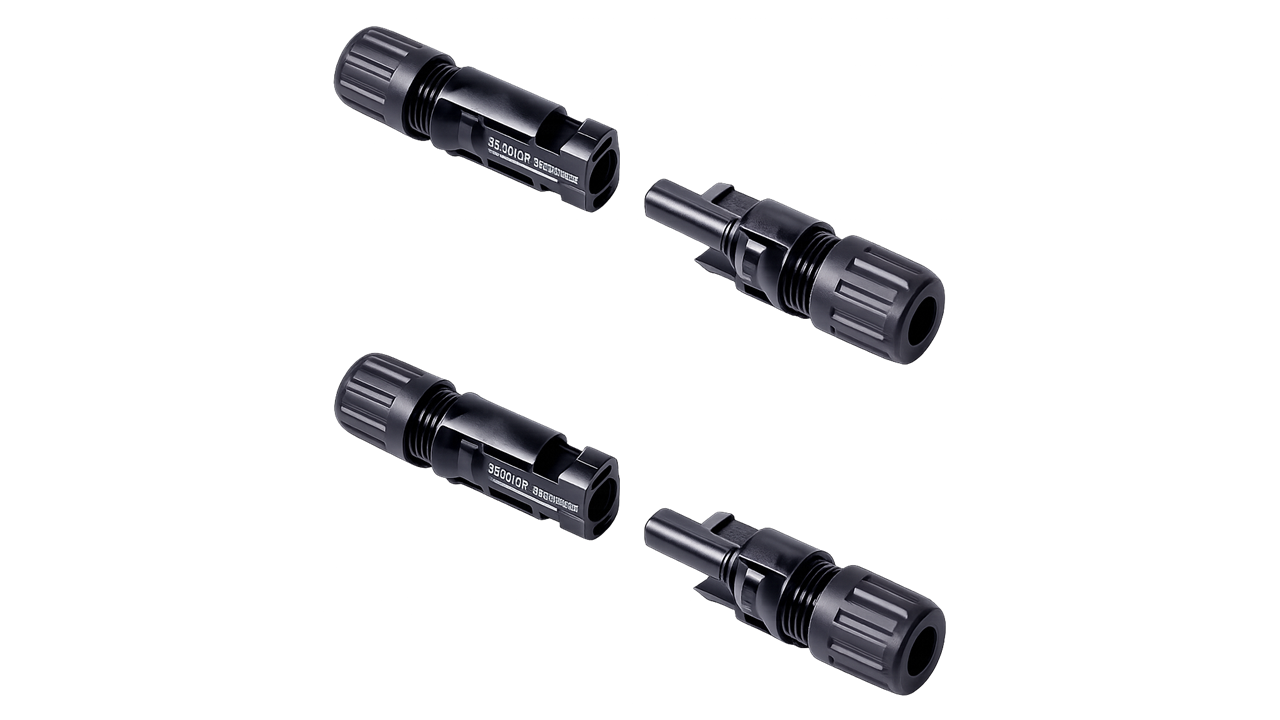

Staubli MC4 Evo 2A 4-6mm Pair
MC4-FEM14-10-PACK
Ensure secure, reliable, and long-lasting solar PV connections with this 10 Pack of MC4 Female Connectors. Manufactured to the high standards expected of MC4-compatible components, these connectors provide excellent electrical performance, low contact resistance, and outstanding durability for residential and commercial solar installations.
Featuring proven MULTILAM contact technology, these connectors maintain consistently low power loss throughout the lifetime of your PV system. The integrated snap-in locking mechanism provides a secure connection, while the safety lock clip helps prevent accidental disconnection and complies with NEC 2011 requirements.
Key Features
- Pack of 10 MC4 Female Connectors
- Genuine MULTILAM contact technology for superior long-term performance
-
Snap-in locking mechanism for secure, reliable connections
- Compatible with 4mm² and 6mm² solar PV cable
-
39A rated current (with 4mm² & 6mm² cable)
- Low contact resistance for maximum system efficiency
- UV and weather-resistant design for outdoor solar installations
- Proven, industry-trusted connector technology with over 14 years of field performance
- Safety lock clip compatible with PV-SSH4 unlocking tool
Technical Specifications
-
Part Number: MC4-FEM14-10-PACK
-
Supplier Code: 32.0014P0001
-
Connector Type: Female Cable Coupler
-
Cable Size: 4mm² & 6mm²
-
Rated Current: 39A
-
Locking System: Snap-in safety lock
-
Pack Quantity: 10 Female Connectors
Installation
For a safe, secure, and compliant installation, these connectors must be crimped using approved MC4 crimping tools. Using the correct tooling ensures optimum electrical performance, maximum reliability, and preserves the integrity of the connection.
Ideal for new solar PV installations, maintenance work, replacement connectors, and professional solar installers seeking dependable, high-quality MC4 connections.
