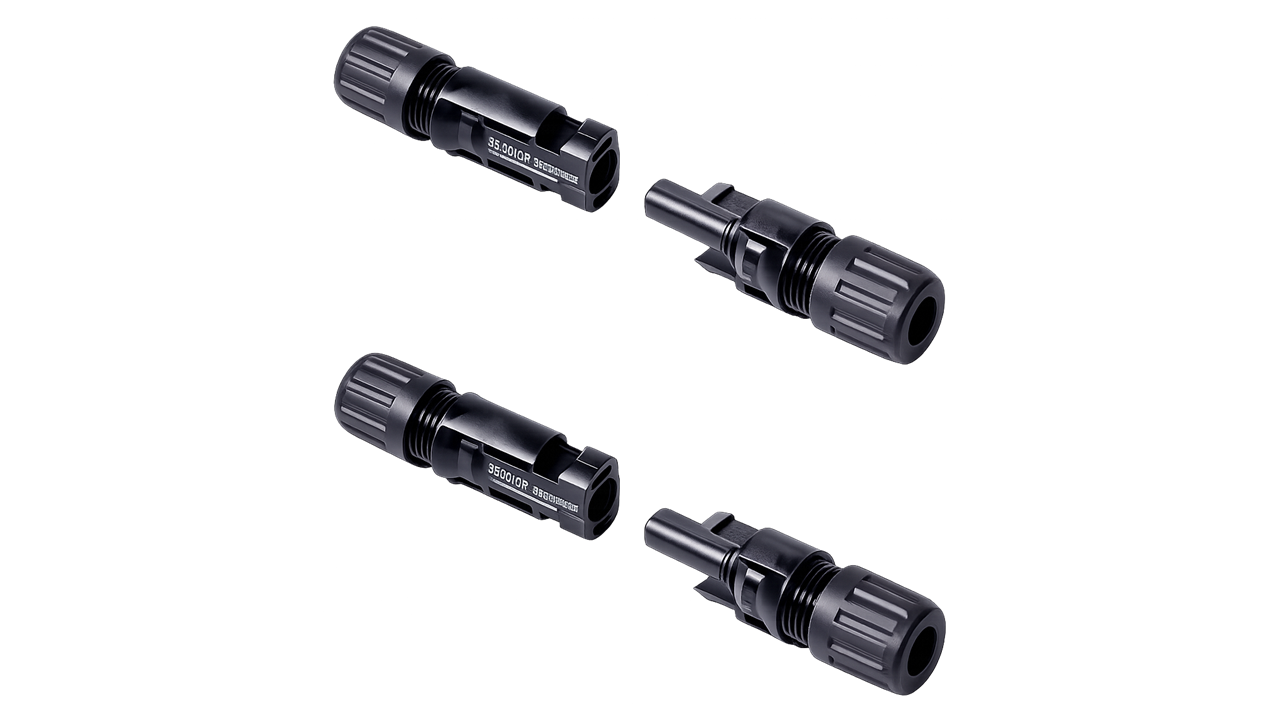

Staubli MC4 Evo 2A 4-6mm Pair
MC4-MAL15-10-PACK
Ensure secure, efficient, and long-lasting solar PV connections with this 10 Pack of MC4 Male Connectors. Designed for professional solar installations, these high-quality connectors provide outstanding electrical performance, low contact resistance, and exceptional durability for both residential and commercial PV systems.
Featuring proven MULTILAM contact technology, these connectors deliver consistently low power loss and reliable conductivity throughout the lifetime of your solar installation. The integrated snap-in locking mechanism provides a secure connection, while the PV-SSH4 safety lock clip prevents accidental disconnection and complies with NEC 2011 requirements.
Key Features
- Pack of 10 MC4 Male Connectors
- Premium MULTILAM contact technology for superior long-term electrical performance
- Secure snap-in locking system for reliable connections
- Compatible with 4mm² and 6mm² solar PV cable
-
39A rated current (with 4mm² & 6mm² cable)
- Low contact resistance to maximise system efficiency
- UV and weather-resistant construction for outdoor use
- Proven connector design with over 14 years of field-tested performance
- Safety lock compatible with PV-SSH4 unlocking tool
Technical Specifications
-
Part Number: MC4-MAL15-10-PACK
-
Supplier Code: 32.0015P0001
-
Connector Type: Male Cable Coupler
-
Cable Size: 4mm² & 6mm²
-
Rated Current: 39A
-
Locking System: Snap-in safety lock
-
Pack Quantity: 10 Male Connectors
Installation
For a safe, secure, and compliant installation, these connectors must be crimped using approved MC4 crimping tools. Using the correct tooling ensures optimum electrical performance, maximum reliability, and a long service life.
Ideal for new solar PV installations, system maintenance, cable extensions, repairs, and professional installers requiring dependable, industry-standard MC4 connections.
