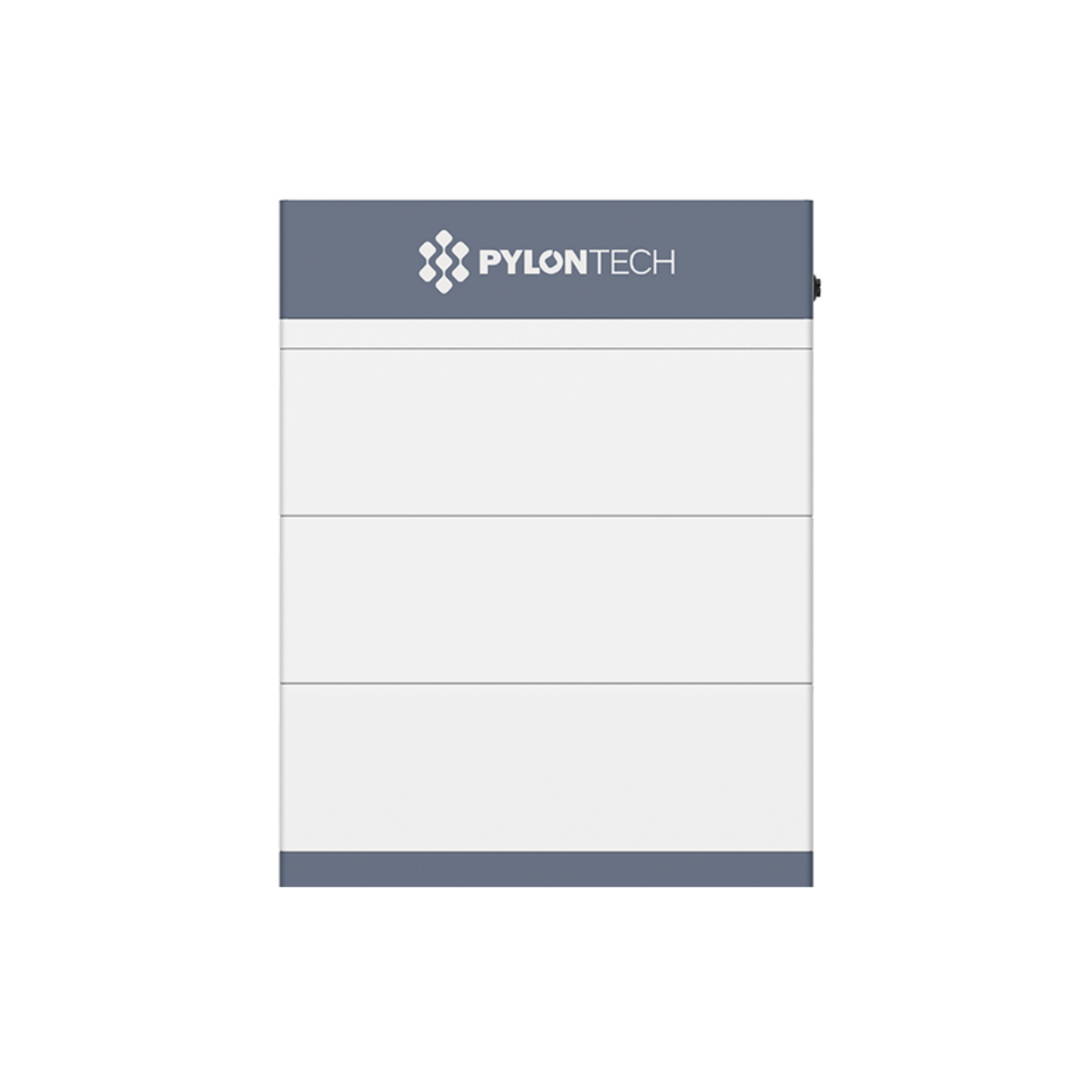

Pylon Force-H3 High Voltage System stack of 3 incl. BMU (15.4 kWh)

Pylon Force-H3 High Voltage System stack of 3 incl. BMU (15.4 kWh)

#2:   PYL-F-H3-BATT-BMU-15.4

Pylon Force-H3 Datasheet

Pylon Force-H3 Installation Manual

Pylon Force-H3 Warranty

Pylontech Force H3 – High-Voltage Lithium Iron Phosphate (LiFePO4) Battery System

The Pylontech Force H3 is the latest generation high-voltage battery storage solution, designed for scalable, reliable, and long-lasting energy storage. Perfect for residential or commercial applications, this system offers plug-and-play installation, high efficiency, and robust performance.

⚡ Key Features

Easy Installation

• Plug-and-play setup – get your system running quickly without complex wiring

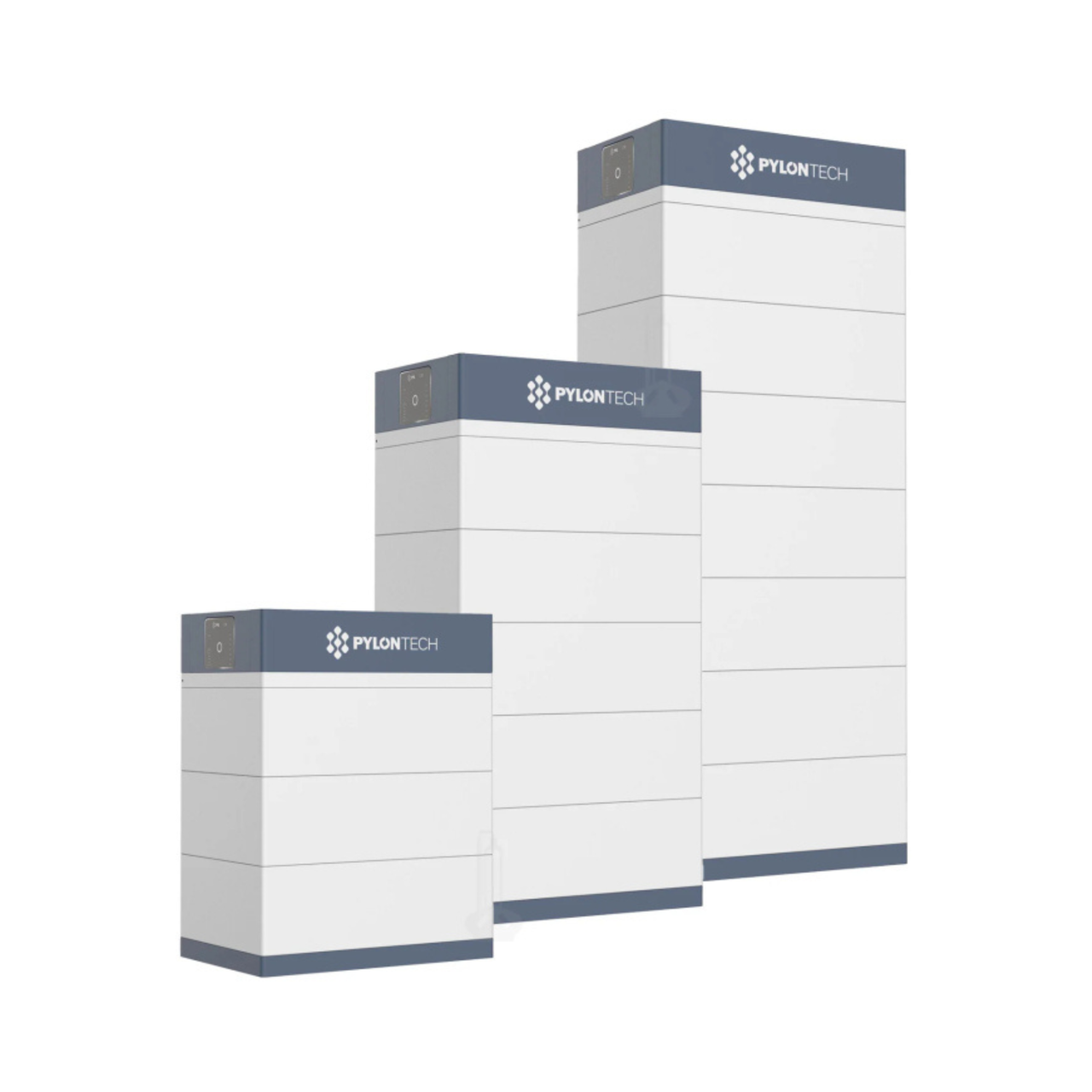

Scalable Design

• Connect up to 6 battery towers in parallel for increased capacity

• Perfect for future expansion

High Performance

• 1C rating enables faster charging and discharging

• Supports 8000+ cycles or up to 15 years of reliable operation

Remote Monitoring

• Track and manage your battery system via app from anywhere

Broad Compatibility

• Works with a wide range of inverters and hybrid systems

• Globally certified for quality and safety

Warranty

• 10-year standard warranty for peace of mind

🔋 System Specifications

• Included Components:

  • 3 × Pylontech Force H3 5.1kWh Battery Modules (PYL-F-H3-BATT)

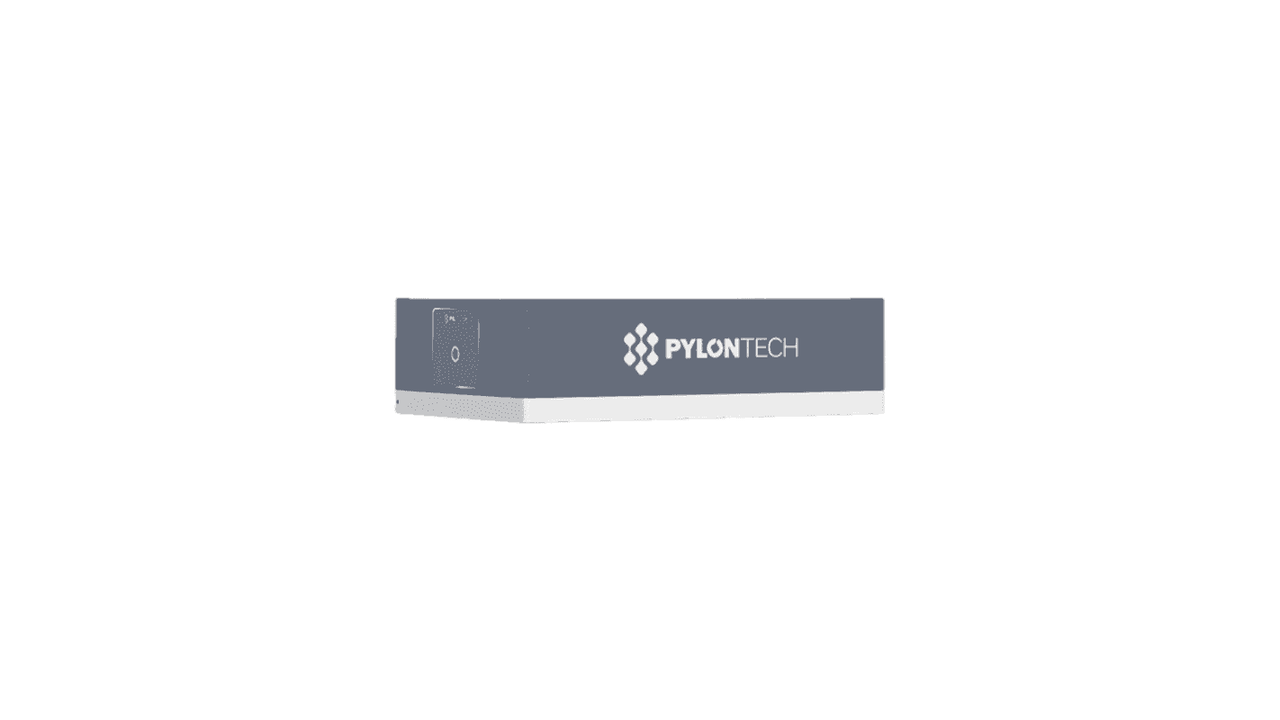

  • 1 × Pylontech Force H3 BMU with base and cables (PLY-F-H3-BMU-BASE)

• Weight: 146.2 kg

• Nominal Energy: 15.36 kWh

• Depth of Discharge: 95%

• Voltage: 307 V

• Continuous Discharge Rate (Normal Use): 15,360 W

• Maximum Discharge Rate (5 Minutes): 15,360 W

• Surge Discharge Rate (15 Seconds): 16,896 W

✅ Why Choose Pylontech Force H3?

• Plug-and-play for easy installation

• Scalable for future growth

• High cycle life for long-term reliability

• Remote monitoring and control

• 10-year warranty backed by a trusted global brand
