#2: PYL-F-H3-BATT-BMU-20.5
Pylon Force-H3 Datasheet
Pylon Force-H3 Installation Manual
Pylon Force-H3 Warranty
The Pylontech Force H3 is a next-generation high-voltage battery storage solution (LiFePO4) designed for residential and commercial solar installations. Its modular design allows for scalable energy storage, giving you flexibility and reliability for long-term energy management.
This system is ideal for those seeking high efficiency, long cycle life, and plug-and-play installation with the ability to expand as your energy needs grow.

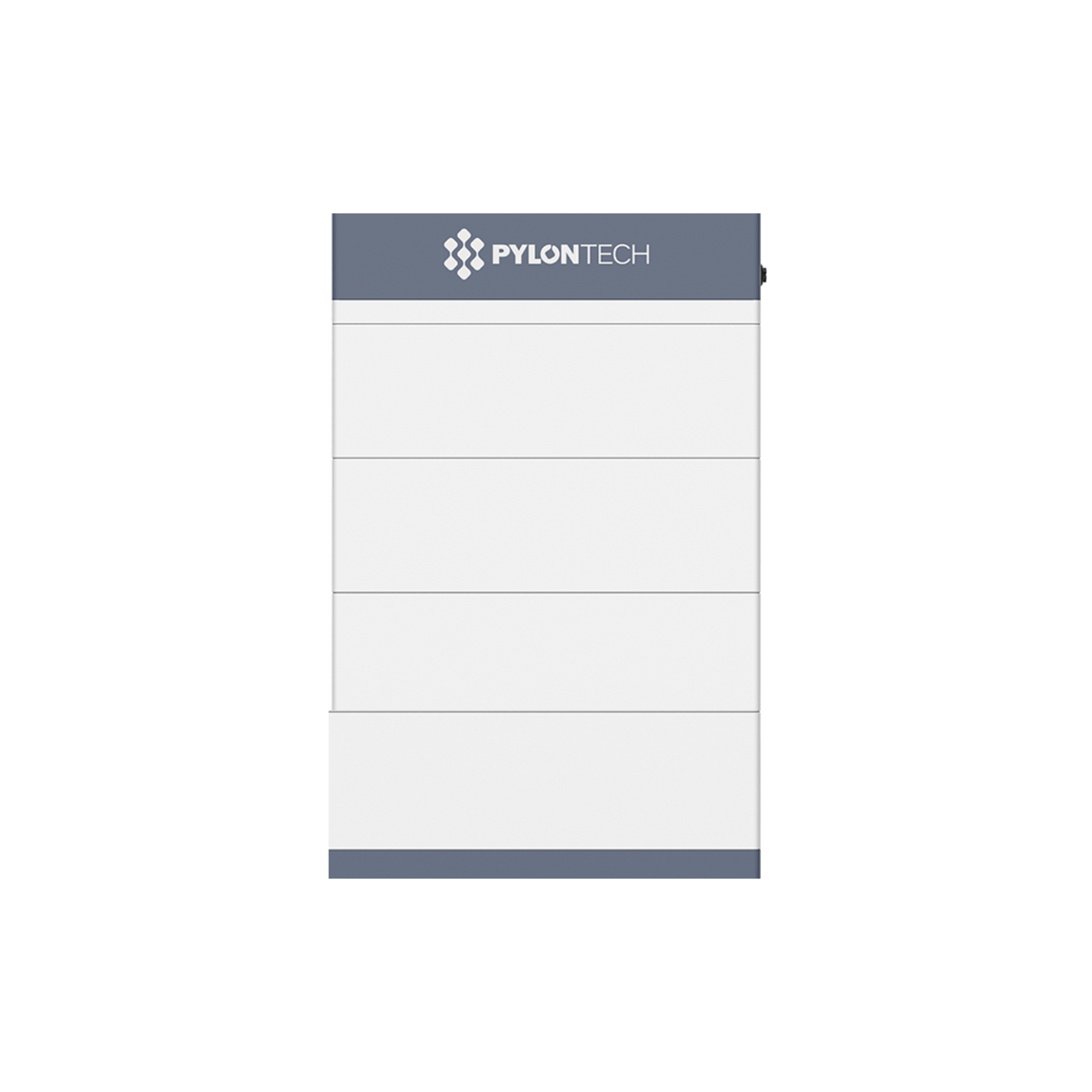

4 x Pylontech Force H3 5.1kWh High Voltage Battery Modules (PYL-F-H3-BATT)
1 x Pylontech Force H3 BMU with base and cables (PLY-F-H3-BMU-BASE)
Easy Install – plug and play for quick setup
Scalable – connect up to 6 battery towers in parallel
High Cycle Life – designed for 8,000+ cycles or 15 years of operation
Fast Charging & Discharging – 1C rating for rapid energy flow
Remote Monitoring – monitor performance via app
Wide Compatibility – works with other well-known battery brands
Globally Certified – meets international safety and performance standards
Warranty – 10-year standard
Weight: 188.2 kg
Nominal Energy: 20,480 Wh
Depth of Discharge: 95 %
Voltage: 409 V
Continuous Discharge Rate (Normal Use): 20,840 W
Maximum Discharge Rate (5 Minutes): 20,840 W
Surge Discharge Rate (15 Seconds): 22,258 W
Maximum Discharge Rate (5 Minutes): 20,480 W
Flexible Energy Storage – expand your system as your energy demands grow
Long-Term Reliability – LiFePO4 chemistry ensures stability and longevity
High Performance – supports continuous and surge loads efficiently
Plug-and-Play Installation – reduces installation time and complexity
✅ The Pylontech Force H3 is a robust, high-voltage battery solution, perfect for scalable solar energy storage with long-term reliability and smart monitoring capabilities.
