#2: SOL-S6-EH1P8K-L-PLUS
Solis 8kW Data Sheet
Solis 8kW User Manual
Solis 8kW Warranty

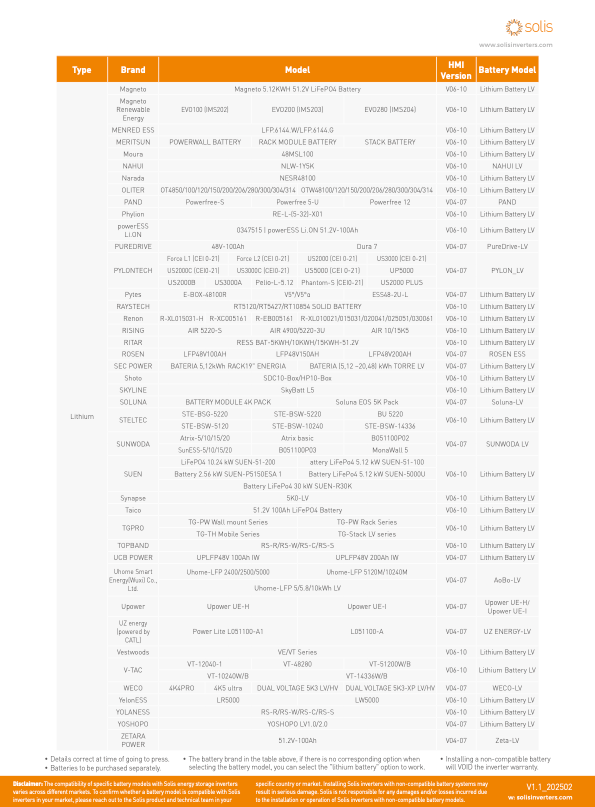

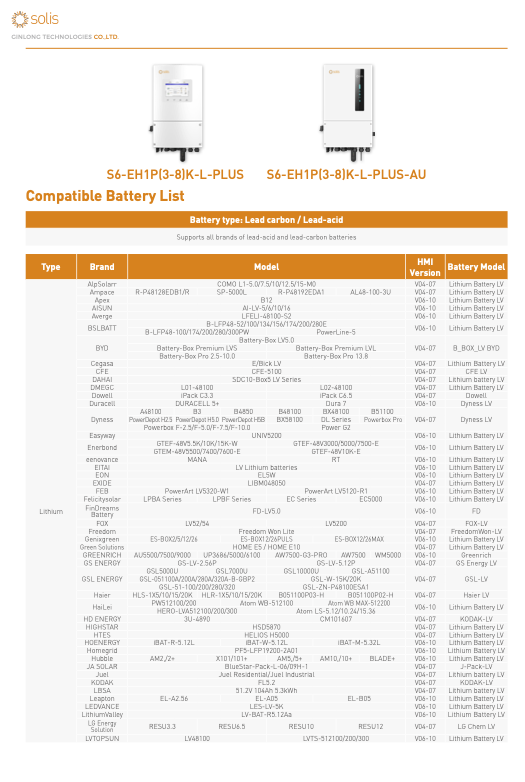

Solis Product Compatibility
This inverter does not include a DC cable for battery storage
A Solis 1-phase Meter ACR10R 16DTE with 120A CT is not compatible with the S6 PLUS model
A Solis 1-phase Eastron meter is required for full functionality
The Solis 8kW Single Phase Low Voltage Energy Storage Hybrid Inverter PLUS is designed for high-demand residential and commercial solar applications. With advanced energy management features, it delivers reliable backup power, peak shaving, and flexible connection options for lead-acid or lithium batteries. Ideal for modern grid-tied or off-grid systems, this inverter maximises self-consumption and protects your investment.
Built-in Backup Port with automatic UPS switching
Supports up to 190A max charge/discharge current
200% DC oversizing capability for flexible solar array configuration
Customisable charge/discharge times with 6 programmable settings
10-second 200% surge power backup for critical loads
Generator compatibility with automatic On/Off control
Flexible 1-phase or 3-phase parallel connection, supporting up to 48kW
AC coupling to upgrade existing grid-connected systems
Peak shaving control in both self-use and generator mode
Compatible with lead-acid and lithium batteries with multiple protection features
Supplier Part No: S6-EH1P8K-L-PLUS
Weight: 22.2 kg
Rated Power: 8,000 W
Max DC Power: 16,000 W
Max AC Power (5 min): 8,000 W
Surge AC Power (1 sec): 8,001 W
Max DC Current: 64 A
DC Inputs: 8, with MC4 connectors included
Min PPT Voltage: 90 V | Max PPT Voltage: 435 V
DC Startup/Shutdown Voltage: 90 V
Max Input Voltage: 500 V
MPPT Quantity: 8
Transformer: None
Euro Efficiency: 96.5%
Warranty: 5 years
