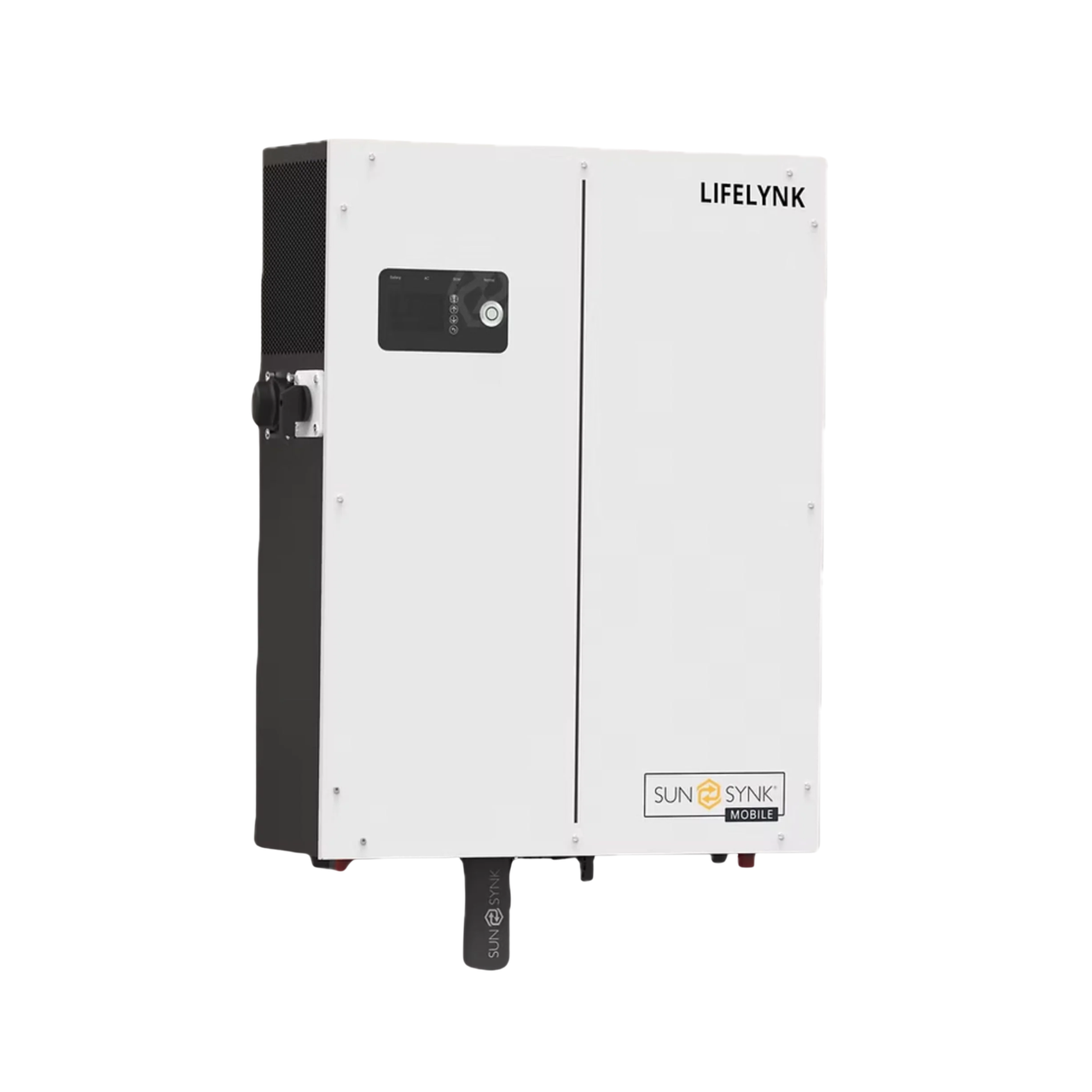

Sunsynk Lifelynk XL 5.2kWh LiFePO4 battery with 5.5kW All In One Hybrid Inverter

Sunsynk Lifelynk XL

This installation project showcases the Sunsynk Lifelynk XL 5.5kW Hybrid Inverter with the PP-100 Lifelynk Battery Add-On Kit, providing expandable energy storage for a reliable, future-proof solution.

The Lifelynk system is designed for maximum compatibility, working seamlessly with all current Sunsynk L & G series models as well as the SUN-BAT-5.32 Sunsynk batteries.

Why Choose Sunsynk Lifelynk XL?

Smart Energy Management

Sunsynk hybrid inverters are fully compatible with Octopus Agile, Flux & Go tariffs, giving you the ability to:

• Buy electricity at cheaper off-peak rates

• Sell excess energy back to the National Grid through SEG payments

• Optimise your energy use automatically to save money

Plug-and-Play Installation

The Lifelynk XL has been engineered to simplify installation. Its in-built connection points provide access to Load, Grid, CT, and WiFi data logger ports, making it a true plug-and-play system.

Expandable Energy Storage

The built-in 5.2kWh LiFePO4 battery can be expanded with additional batteries for greater storage capacity, ensuring your system can grow with your household or business energy needs.

Product Highlights

Small and Powerful

• Ideal for smaller properties, social housing, and local government projects.

All-in-One Solution

• 5.5kW hybrid inverter

• 5.2kWh LiFePO4 battery

• 6.8kW MPPT charge controller

• Compact, wall-mountable design

Emergency Power Support

• EPS (Essential Power Supply) function with 5.5kW backup output in case of power cuts.

• Can also be integrated alongside an EV charger for maximum efficiency.

Easy to Install

• Includes everything required for a fast and professional installation.

Technical Specifications

• Brand: Sunsynk

• Rated Power: 5500W

• Battery Capacity: 5.223kWh (expandable)

• Max. Charge/Discharge Current: 5kW

• Dimensions: 62.4 × 18.22 × 90.1 cm

• Weight: 82kg

• DC Start-up Voltage: 150V

• Warranty: 5 Years

Full Control with the Sunsynk App

With the Sunsynk Logger App (available on iOS, Android, or via www.sunsynk.net), you can:

Remote Access & Real-Time Monitoring

• Adjust all inverter settings from anywhere with an internet connection.

• Get instant push notifications in the event of a power cut or switch to backup power.

• Monitor live system performance, including charge/discharge rates and grid interaction.

Advanced Reporting

• Generate detailed reports and graphs to track energy usage.

• Identify peak consumption times and optimise system settings for maximum savings.

Seamless Octopus Integration

• Integrated with Octopus Agile, Flux & Go tariffs.

• Charge your batteries at the cheapest rates and discharge during peak times for maximum return.

This installation demonstrates how Sunsynk Lifelynk XL can transform a solar PV system into a smart, expandable, and money-saving energy solution.
