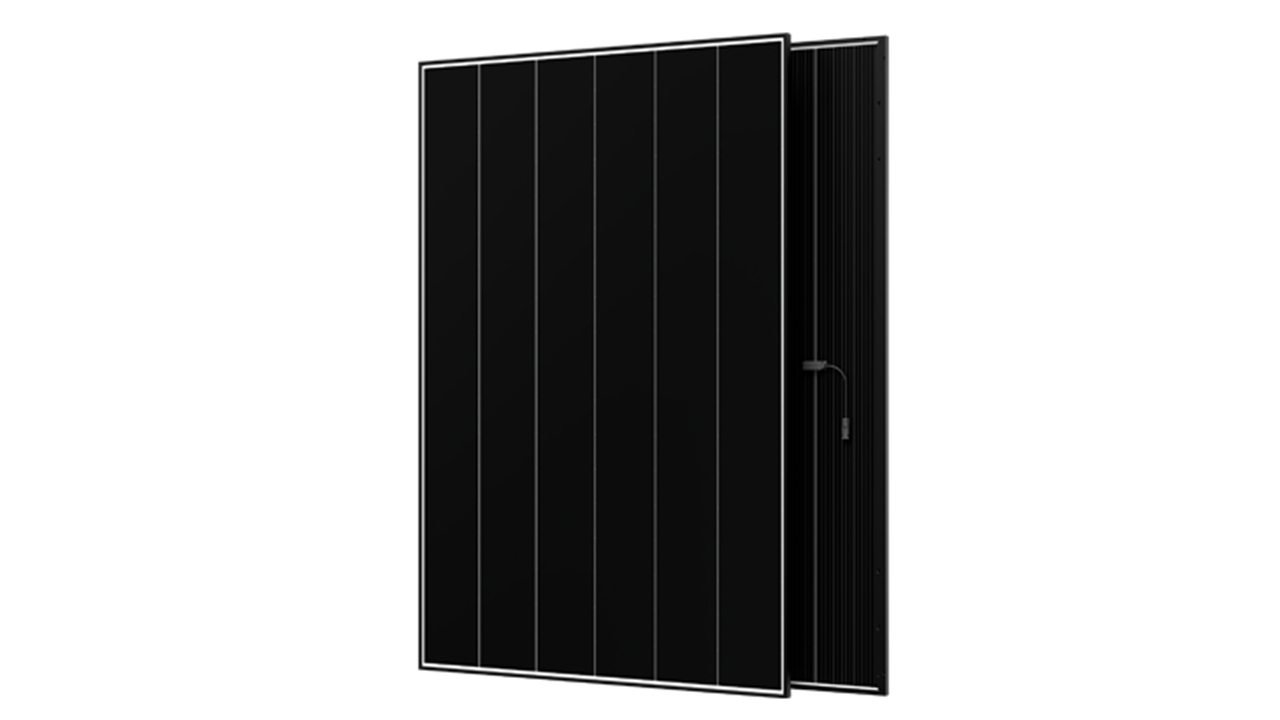

485W Aiko Neostar 3P+ Black Frame Bifacial solar panel
2: 7832
Aiko 485W Datasheet
Aiko 485W Installation Manual
Aiko 485W Warranty
Aiko MCS Certificate
Minimum order for this panel: 4 panels
Explore Our Full Solar Panel Range
Browse our complete collection of high-performance solar panels [here].
Available for supply only or with professional installation. For a tailored system designed around your home and energy needs, simply complete our bespoke quote form [here].

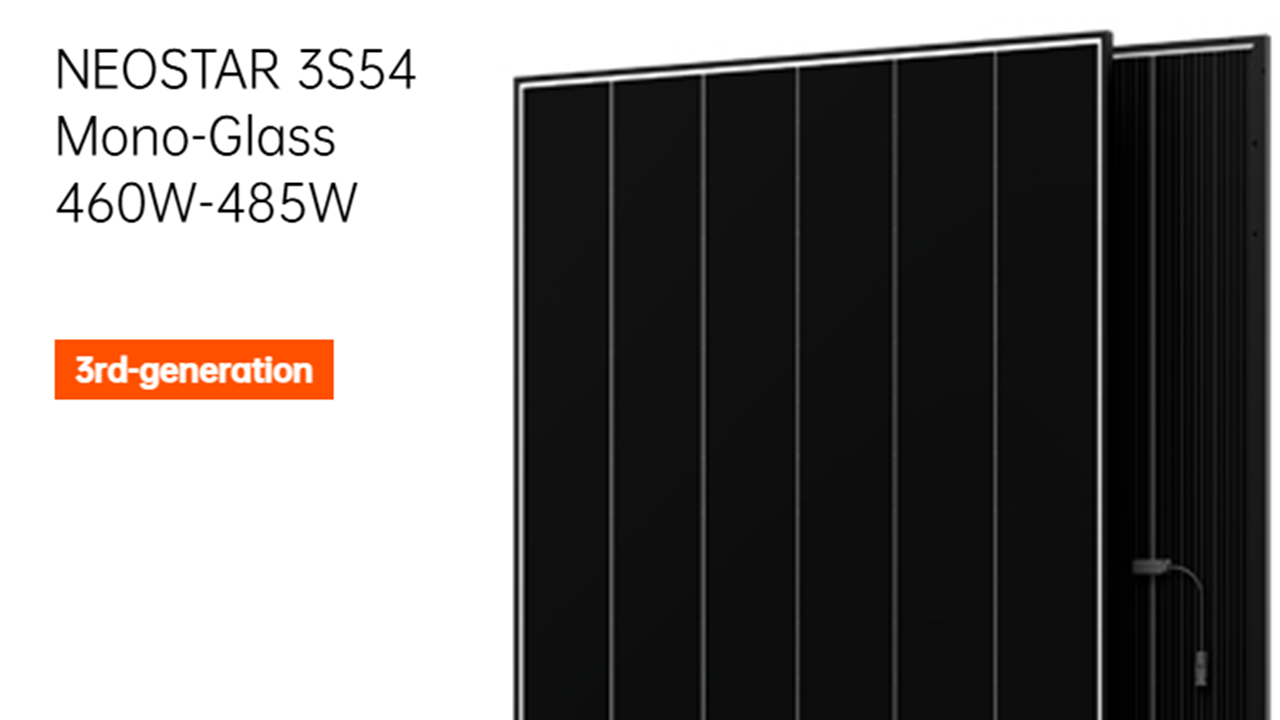

AIKO NEOSTAR 3P+ 485W ABC Solar Panel – High Efficiency 24.3%
The third-generation AIKO NEOSTAR 3P+ 485W solar panel represents the latest in advanced photovoltaic technology, delivering industry-leading performance with an impressive 24.3% efficiency. Designed using All Back Contact (ABC) technology, this panel removes visible front-side busbars, maximising active surface area and enhancing both output and aesthetics.
Ideal for residential and commercial installations, the NEOSTAR 3P+ series offers superior energy generation, even in challenging conditions.
Key Features & Benefits
-
Ultra-High Efficiency (24.3%)
Generate more power per square metre with cutting-edge cell technology
-
All Back Contact (ABC) Design
No front gridlines for a sleek, all-black finish and improved light absorption
-
Enhanced Power Output (485W)
Higher peak power compared to previous generations
-
Superior Partial Shading Performance
Maintains higher yields even when partially shaded
-
Improved Temperature Coefficient
Better performance in high temperatures for consistent energy generation
-
Advanced Micro-Crack Resistance
Increased durability and long-term reliability
-
Lower BOS (Balance of System) Costs
Fewer panels and components required – reducing installation time and cost
Why Choose AIKO NEOSTAR 3P+ Panels?
The AIKO NEOSTAR 3P+54 is engineered to maximise system performance while maintaining a premium aesthetic. With its next-generation ABC cell architecture, it reduces resistive losses and increases the usable light-absorbing surface area, resulting in higher overall efficiency and energy yield.
This makes it an excellent choice for projects where space optimisation, performance, and visual appeal are key.
Technical Specifications
Electrical Data
- Peak Power (Pmax): 485W
- Voltage at Maximum Power (Vmpp): 34.60V
- Open Circuit Voltage (Voc): 41.00V
- Current at Maximum Power (Impp): 14.02A
- Short Circuit Current (Isc): 14.84A
System Data
- Dimensions: 1762 x 1134 x 30 mm
- Weight: 24.2 kg
Warranty & Performance
-
Product Warranty: 25 Years
-
Performance Warranty: 30 Years
- Guaranteed long-term reliability and consistent energy output
Additional Information
- Efficiency: 24.3%
- Product Code: AIKO-A485-MCE54Dw
Perfect For
- Residential solar PV systems
- Commercial rooftop installations
- High-efficiency, space-limited projects
- Premium all-black solar array designs
