Esdec Flatfix Fusion Ballast Data Sheet

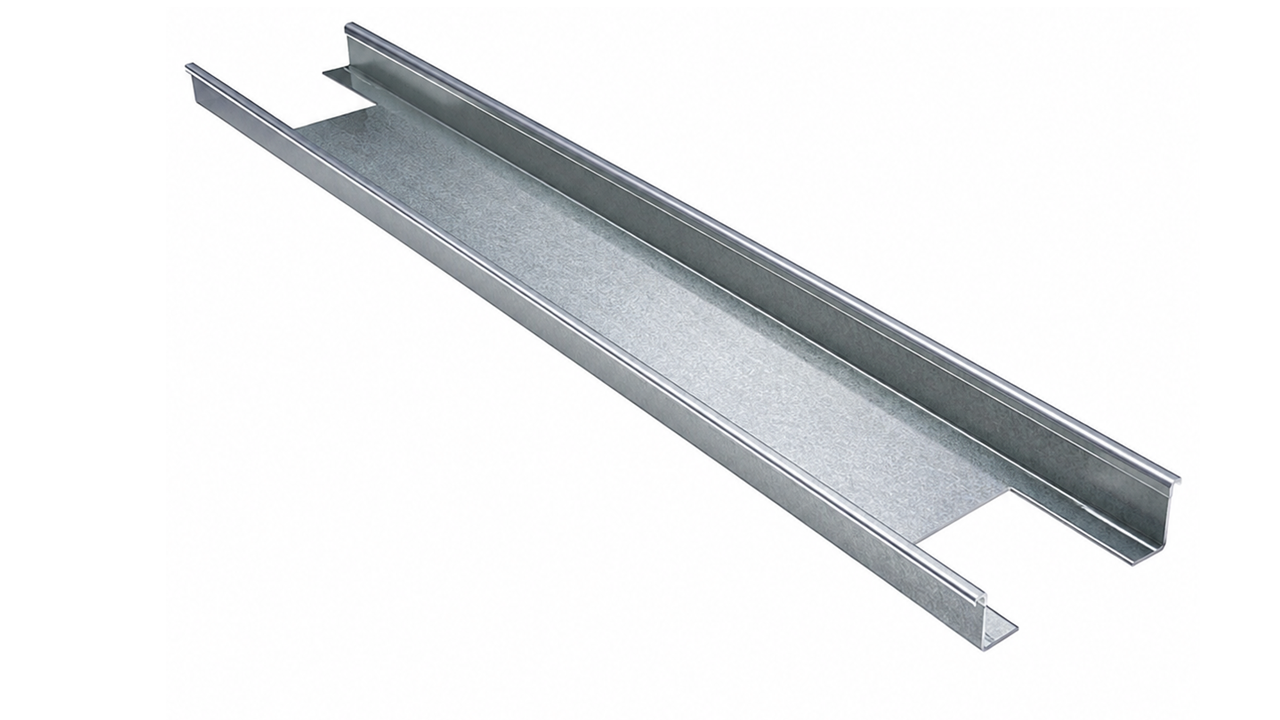

Esdec FlatFix Fusion Portrait Ballast Container – 1007241

The Esdec FlatFix Fusion Portrait Ballast Container is a universal ballast tray designed for the FlatFix Fusion Portrait flat roof solar mounting system. It securely accommodates bricks or ballast blocks, helping provide stability for solar panel installations without requiring direct roof penetration.

Designed for portrait-mounted solar panels measuring 1690–1780mm in length and 1000–1140mm in width, this ballast container is suitable for compatible FlatFix Fusion configurations on small and medium-sized flat roofs.

Designed for FlatFix Fusion Portrait Solar Mounting

Universal Flat Roof Ballast Tray

The ballast container can be used with FlatFix Fusion configurations and provides a dedicated tray for securely positioning bricks or ballast blocks within the solar mounting system.

Self-Locating Installation

The container is designed to self-locate onto the high base locator pins, helping installers achieve accurate positioning during system assembly and reducing installation time.

Secure Ballast Fixing

Perimeter Mounting Option

When positioned around the perimeter of the solar array, the ballast container can be screwed directly onto the base profiles using the compatible FlatFix Fusion self-tapping sheet metal screw (ESD-1008085).

Suitable for Bricks or Blocks

The universal tray accommodates suitable ballast materials, allowing installers to configure the system according to project-specific structural and wind-loading requirements.

Compatible Panel Dimensions

Designed for Portrait Solar Panels

This FlatFix Fusion Portrait ballast container is intended for solar panels with the following dimensions:

• Panel Length: 1690–1780mm

• Panel Width: 1000–1140mm

Always check the FlatFix Fusion Panel Length and Ballast Container Matching Table before installation to confirm the correct ballast container has been selected for the specific solar module.

Modular Esdec Flat Roof Mounting System

Flexible System Configuration

FlatFix Fusion is Esdec’s modular and flexible solar mounting system for small and medium-sized flat roofs. Its modular design allows installers to create customised configurations to suit different roof layouts and solar panel arrangements.

The system can be configured in both single and dual configurations, providing flexibility across a range of flat roof solar installations.

Proven Dutch Design

FlatFix Fusion is a Dutch-designed solar mounting system developed for practical, efficient and reliable flat roof PV installations.

Technical Specifications

Product Details

• Product: FlatFix Fusion Portrait Ballast Container

• Supplier Part Number: 1007241

• Application: Flat Roof Solar Mounting

• System: Esdec FlatFix Fusion Portrait

• Ballast Type: Bricks or Blocks

• Panel Orientation: Portrait

Compatibility

• Panel Length: 1690–1780mm

• Panel Width: 1000–1140mm

Physical Specifications

• Weight: 3.58kg

• Length: 1.86m

Installation Information

Before installation, verify that the selected ballast container matches the solar panel dimensions using the FlatFix Fusion Panel Length and Ballast Container Matching Table.

For perimeter positions, the compatible ESD-1008085 self-tapping sheet metal screw can be used to secure the ballast container directly to the base profile.

Why Choose the Esdec FlatFix Fusion Portrait Ballast Container?

• Designed specifically for FlatFix Fusion Portrait solar mounting

• Suitable for compatible panels measuring 1690–1780mm × 1000–1140mm

• Universal tray for bricks or ballast blocks

• Self-locating design for faster installation

• Can be secured to perimeter base profiles

• Suitable for small and medium-sized flat roof solar installations

• Part of Esdec’s modular FlatFix Fusion mounting system
