450W Neostar 2S, N-Type, Mono-Glass ABC, 54 Cell, All Black, MC4, Gen 2
#2: AIK-A-MAH54-450-AB-G2
Aiko 450W Datasheet
Aiko 450W Installation Manual
Aiko 450W Warranty
Please check minimum order quantity prior to ordering as this varies depending on the specific panel.
Minimum order for this panel: 5 panels.
For orders with no minimum please visit our Single Panels page.
Other panels have a minimum order of 3 - 5 panels.

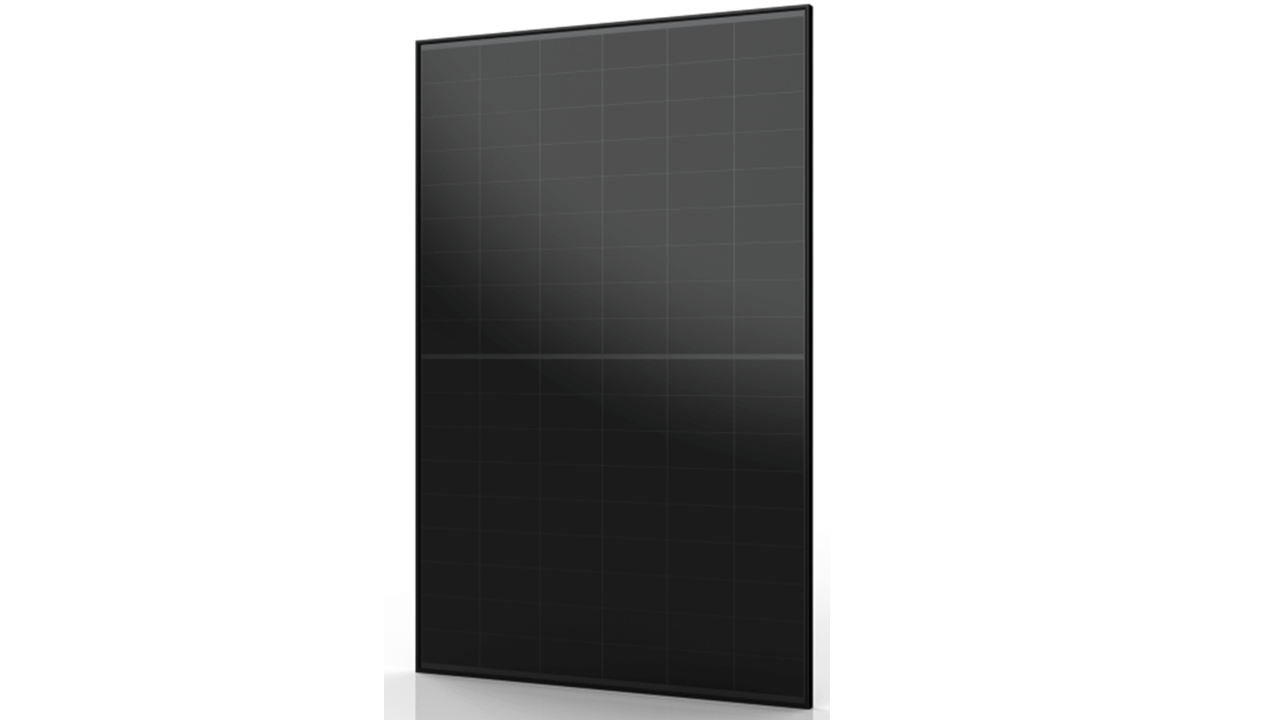

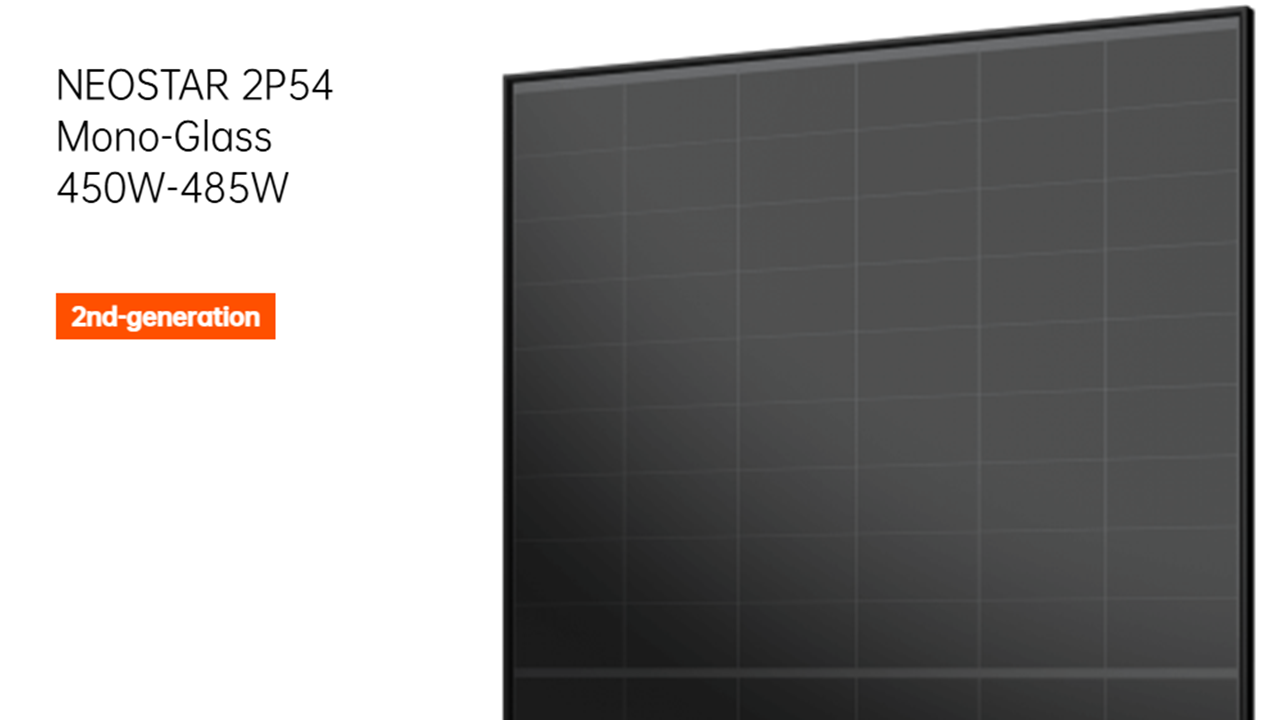

The AIKO Neostar Gen 2 450W All-Black solar panel delivers industry-leading efficiency, premium aesthetics, and advanced cell technology for high-performance residential solar installations. Built using N-type ABC (All Back Contact) monocrystalline cells, this panel achieves an exceptional 22.6% module efficiency, making it one of the most efficient residential panels available.
Designed with a sleek, bezel-less, all-black finish, the Neostar Gen 2 combines cutting-edge performance with architectural appeal.
Advanced Cell Technology & Performance
N-Type ABC Cell Design
AIKO’s proprietary All Back Contact (ABC) technology eliminates front-side busbars, increasing active cell area and improving light absorption for higher energy output.
Market-Leading Efficiency
With up to 23.1% efficiency across the 440–460W range and 22.6% efficiency at 450W, this panel offers maximum power generation per square metre.
Cell-Level Partial Shade Optimisation
The industry’s only cell-level shading optimisation technology reduces energy loss from partial shading, delivering higher yields compared to conventional panels.
Reliability, Safety & Durability
Excellent Temperature Performance
Featuring a superior temperature coefficient of -0.26%/°C, the panel maintains strong output in high-temperature conditions, validated by CEA PV Tech lab testing.
Enhanced Fire Safety & Micro-Crack Resistance
High temperature restriction technology improves fire safety, while advanced manufacturing processes provide excellent resistance to micro-cracks during transport and installation.
Premium Design & Aesthetics
All-Black Bezel-Less Appearance
The elegant no-busbar, all-black design delivers a clean, modern look, making this panel ideal for design-focused residential rooftops.
Award-Winning Innovation
AIKO is recognised globally for excellence, including:
-
Intersolar Innovation Award 2023
-
Red Dot Design Award 2023
-
ESG Transparency Award 2024
Electrical Specifications
Power & Voltage
-
Rated Power: 450 W
-
VMPP: 33.7 V
-
Voc: 40.69 V
Current
-
IMPP: 13.36 A
-
Isc: 14.12 A
System Ratings
Physical & Installation Details
Dimensions & Weight
-
Length: 1,757 mm
-
Width: 1,134 mm
-
Depth: 30 mm
-
Weight: 21.6 kg
Installation Compatibility
Why Choose the AIKO Neostar Gen 2 450W Panel?
✔ One of the highest-efficiency residential panels available
✔ Advanced N-type ABC cell technology
✔ Cell-level partial shading optimisation
✔ Excellent temperature coefficient and fire safety
✔ Premium all-black, bezel-less design
✔ Award-winning innovation and long-term warranties
