SolarEdge 6kw Three Phase on grid 6000w solar Inverter
1: SE-6000-3PH-APP Inverters - Main Units
#4: SE6K-RW0TEBEN4
SolarEdge 10kw Data Sheet
SolarEdge 10kw User Manual
SolarEdge G100 Certificate
Rating: 6,000W
Phases: 3

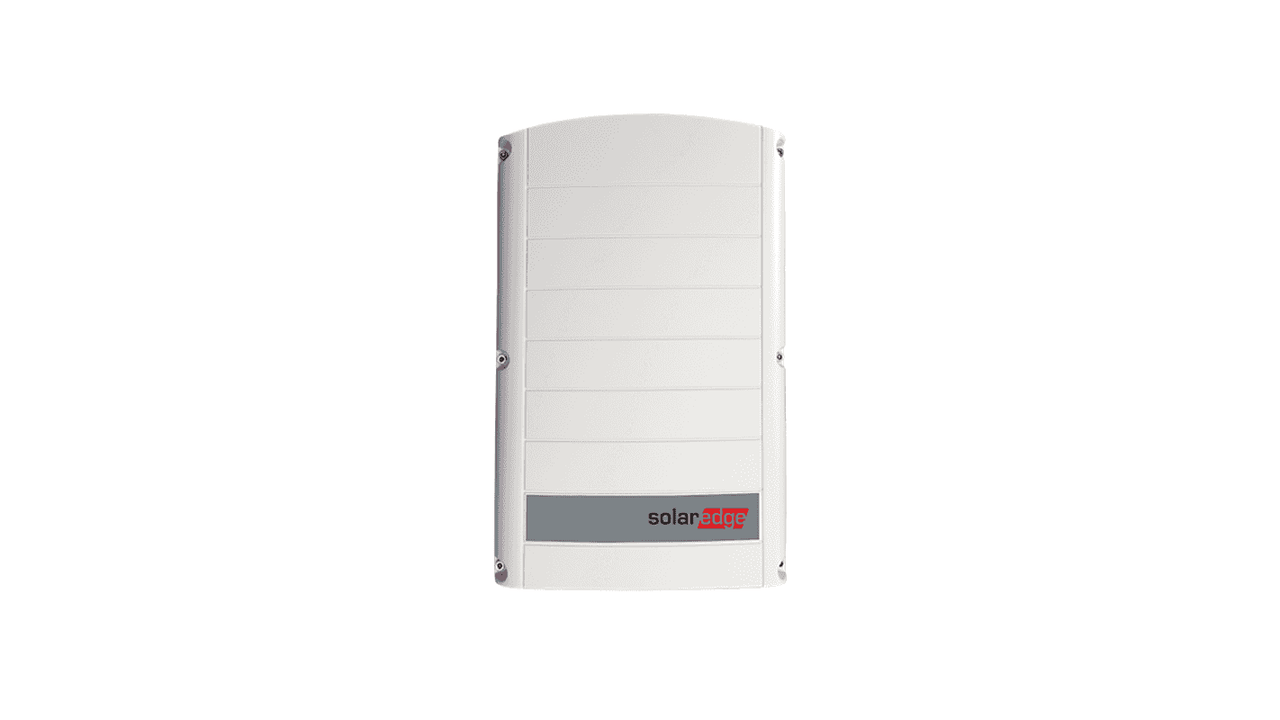

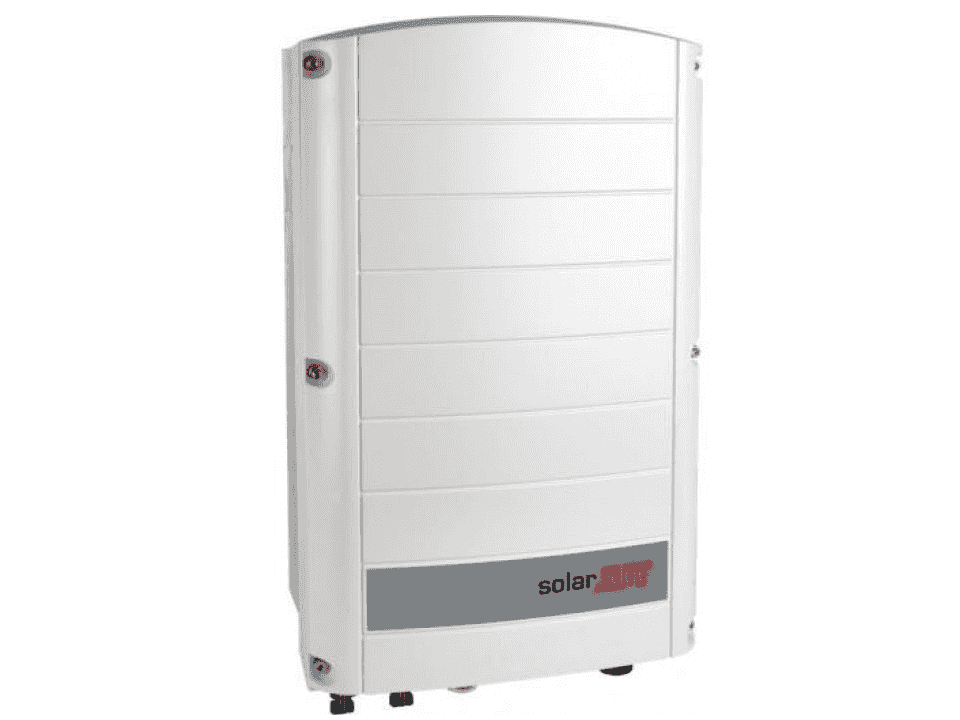

Solar Edge 6000 3phase inverter with Set APP function (no display)
SolarEdge 6kW Inverter – Single Phase
⚠️ Important: This inverter has no MPPT trackers and requires SolarEdge power optimisers to function.
The SolarEdge 6kW single-phase inverter combines advanced digital control technology with a high-efficiency, single-stage power conversion architecture. Designed specifically to work with SolarEdge power optimisers, this inverter ensures maximum solar power harvesting and industry-leading reliability.
The innovative fixed-voltage technology allows the inverter to always operate at its optimal input voltage, regardless of string size or environmental conditions—providing consistent performance and efficiency.

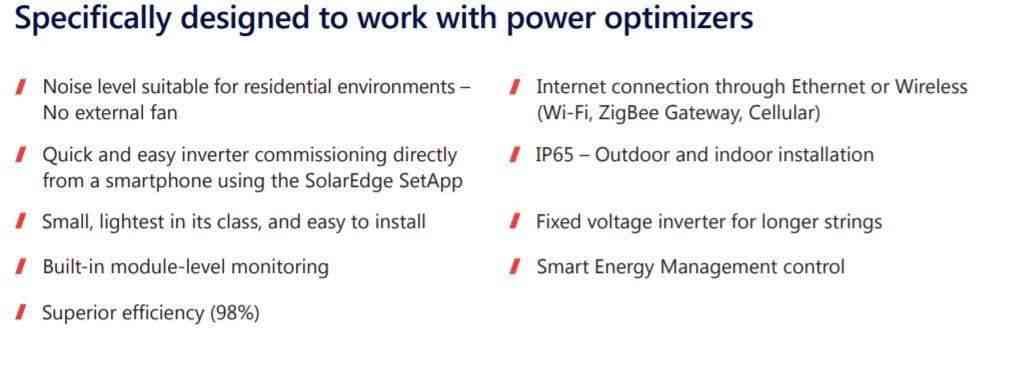

🔑 Key Features
-
Requires SolarEdge Power Optimisers (not included)
-
Superior energy harvesting with fixed-voltage technology
-
High efficiency with simplified architecture
-
Designed for long-term reliability and durability
-
Integrated DC switch for safety and maintenance
-
Backed by a 12-year warranty (extendable options available)
📊 Technical Specifications
-
Weight: 16.4 kg
-
Rated AC Power: 6,000 W
-
Euro Efficiency: 97.3%
-
Min / Max Input Voltage (PPT): 750 V – 900 V
-
Max DC Power: 10,000 W
-
Max DC Current: 10 A
-
Max Input Voltage: 900 V
-
Max DC Inputs: 2
-
Transformer: None (transformerless design)
-
Integrated DC Switch: Yes
-
MPPT Trackers: 0 (optimiser required)
-
Warranty: 12 years
✅ Ideal for residential and small commercial solar systems where SolarEdge optimisers are used for enhanced monitoring, safety, and efficiency.
