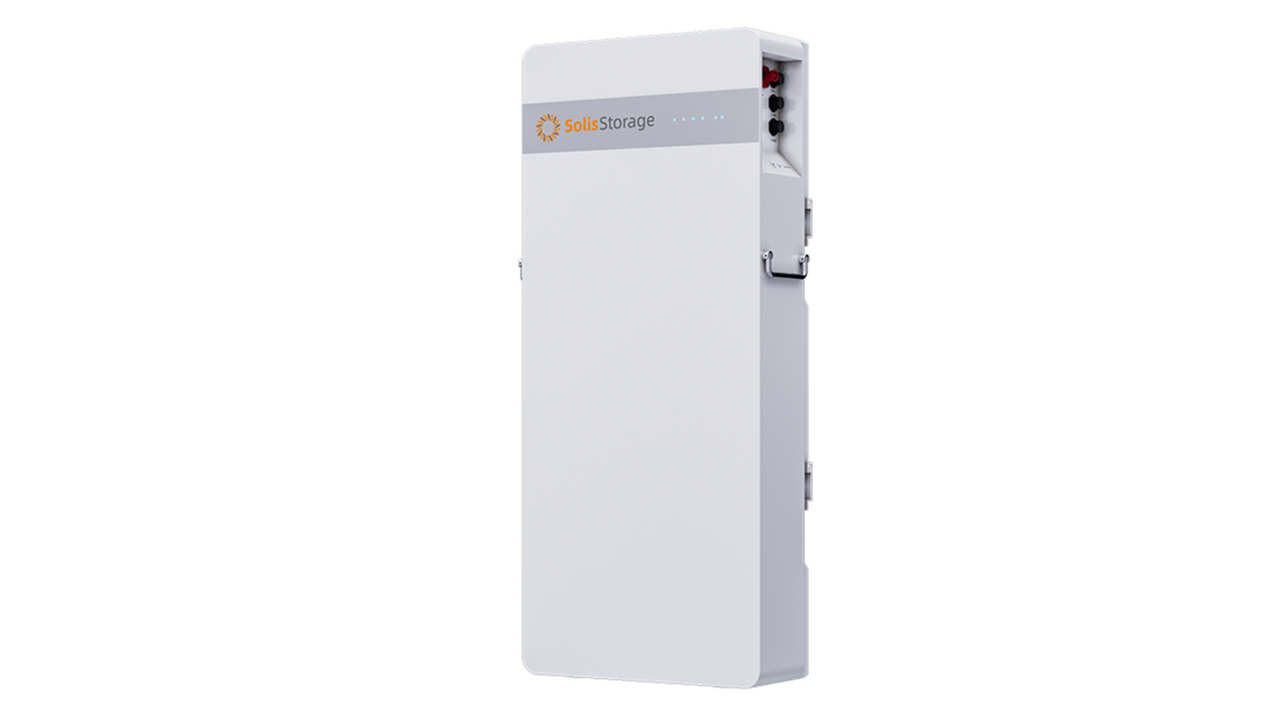

Solis IntelliHome 10kWh Low Voltage Battery – Wall Mounted
- #2: SOL-SBAT-R10K-L-WM-OD
- #4: IntelliHome-10kWh-OD
Solis IntelliHome Datasheet
Solis InteliHome Manual
Solis Intelihome Waranty
The Solis IntelliHome 10kWh Low Voltage Battery is a high-performance residential energy storage solution designed for reliable daily cycling, increased solar self-consumption and dependable backup power.
Manufactured using safe and durable LiFePO₄ lithium iron phosphate battery cells, the IntelliHome battery provides excellent thermal stability, long service life and consistent performance. It supports a 100% depth of discharge and is rated for more than 6,000 battery cycles, making it ideal for long-term domestic energy storage applications.
With a slim wall-mounted design and a nominal capacity of 10.2kWh, the battery provides a practical solution for properties requiring increased overnight storage, reduced grid dependence and improved protection during power cuts when installed with a compatible backup system.
Key Features
- 10.2kWh nominal battery capacity
- Safe and durable LiFePO₄ battery chemistry
- 100% depth of discharge
- More than 6,000 battery cycles
- Up to 5.2kW charge and discharge power
- Low-voltage 51V battery architecture
- Integrated intelligent battery management system
- Suitable for wall or floor mounting
- Designed for residential solar and battery storage systems
- Compatible with selected Solis low-voltage hybrid inverters
Technical Specifications
Battery Type: Lithium Iron Phosphate – LiFePO₄
Nominal Energy: 10.2kWh / 10,200Wh
Nominal Voltage: 51V
Depth of Discharge: 100%
Maximum Charge Rate: 5.2kW
Maximum Discharge Rate: 5.2kW
Weight: 95kg
Height: 1.19m
Mounting: Wall or floor mounted
Please note that the maximum charge and discharge rate may be restricted by either the battery or the connected inverter, depending on which device has the lower operating limit.
Important Connector Information
The first production batch of these batteries does not include the terminals required to connect the battery power cable to the inverter.
Installers will therefore need to source and correctly crimp the appropriate terminals directly onto the battery power cable.
Required Inverter Connectors
-
Solis S6-EH1P(3-10)K-L-PLUS: 2 × M8 OT terminals
-
Solis S6-EH3P(5-18)K02-NV-YD-L: 2 × M8 OT terminals
-
Solis S6-EH1P(12-18)K03-NV-YD-L: 2 × M8 OT terminals
Installation and cable termination must be completed by a suitably qualified installer using correctly rated components and approved crimping equipment.
Firmware Compatibility Notice
Any compatible Solis inverter manufactured before April 2026 may require a firmware update before it can be commissioned with a Solis IntelliHome battery.
Installers should review and follow the Solis technical document:
“Solis – IntelliHome Compatibility – Inverter Firmware Upgrade SOP”
The inverter firmware and battery compatibility should always be confirmed before installation and commissioning.
For full technical specifications, compatibility information and installation guidance, please refer to the linked product documentation.
