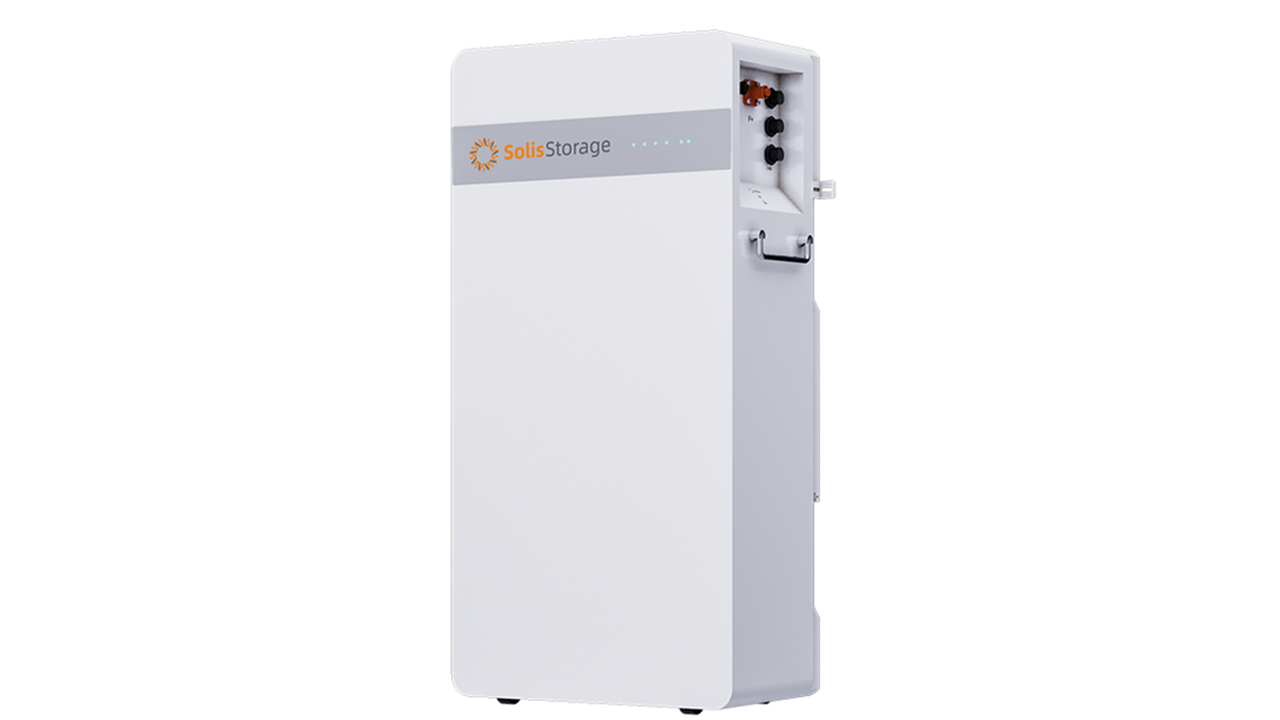

Solis IntelliHome 16kWh Low Voltage Battery – Wall Mounted
- #2: SOL-SBAT-R10K-L-WM-OD
- #4: IntelliHome-16kWh-OD
Solis IntelliHome Datasheet
Solis InteliHome Manual
Solis Intelihome Waranty
The Solis IntelliHome 16kWh Low Voltage Battery is a premium residential energy storage solution designed to maximise solar self-consumption, reduce electricity costs, and provide dependable backup power when paired with a compatible Solis hybrid inverter.
Built using advanced LiFePO₄ (Lithium Iron Phosphate) battery technology, the SolisStorage range delivers exceptional safety, reliability and long service life. Supporting a 100% depth of discharge and offering over 6,000 charge cycles, the IntelliHome battery is engineered to provide around 10 years of dependable performance under normal operating conditions.
Suitable for wall or floor mounting, the IntelliHome battery features an intelligent Battery Management System (BMS) to ensure safe, stable operation and optimise battery performance throughout its lifespan.
Key Features
- 16kWh (16,000Wh) usable battery capacity
- Safe, long-life LiFePO₄ battery technology
- 100% depth of discharge (DoD)
- Over 6,000 charge/discharge cycles
-
Up to 8.16kW maximum charge and discharge power
- 51V low-voltage battery architecture
- Intelligent integrated Battery Management System (BMS)
- Suitable for wall or floor installation
- Designed for residential solar and battery storage systems
Technical Specifications
-
Nominal Energy: 16kWh (16,000Wh)
-
Nominal Voltage: 51V
-
Battery Chemistry: Lithium Iron Phosphate (LiFePO₄)
-
Depth of Discharge: 100%
-
Maximum Charge Rate: 8.16kW
-
Maximum Discharge Rate: 8.16kW
-
Weight: 126kg
-
Height: 1.08m
Please Note: The maximum charge and discharge power may be limited by either the battery or the connected inverter, depending on the capabilities of each device.
Important Installation Notice
The first production batch of these batteries does not include the power cable terminals required to connect the battery to the inverter.
Installers will need to source and correctly crimp the required terminals onto the battery power cable before installation.
Required inverter connectors:
-
S6-EH1P(3-10)K-L-PLUS – 2 × M8 OT terminals
-
S6-EH3P(5-18)K02-NV-YD-L – 2 × M8 OT terminals
-
S6-EH1P(12-18)K03-NV-YD-L – 2 × M8 OT terminals
Firmware Compatibility
Important: Any compatible Solis inverter manufactured before April 2026 will require a firmware update before commissioning with a Solis IntelliHome battery.
Please refer to the Solis technical document:
"Solis – IntelliHome Compatibility – Inverter Firmware Upgrade SOP"
for full firmware update instructions and compatibility guidance.
For complete technical documentation, installation manuals and compatibility information, please refer to the Solis product documentation.
