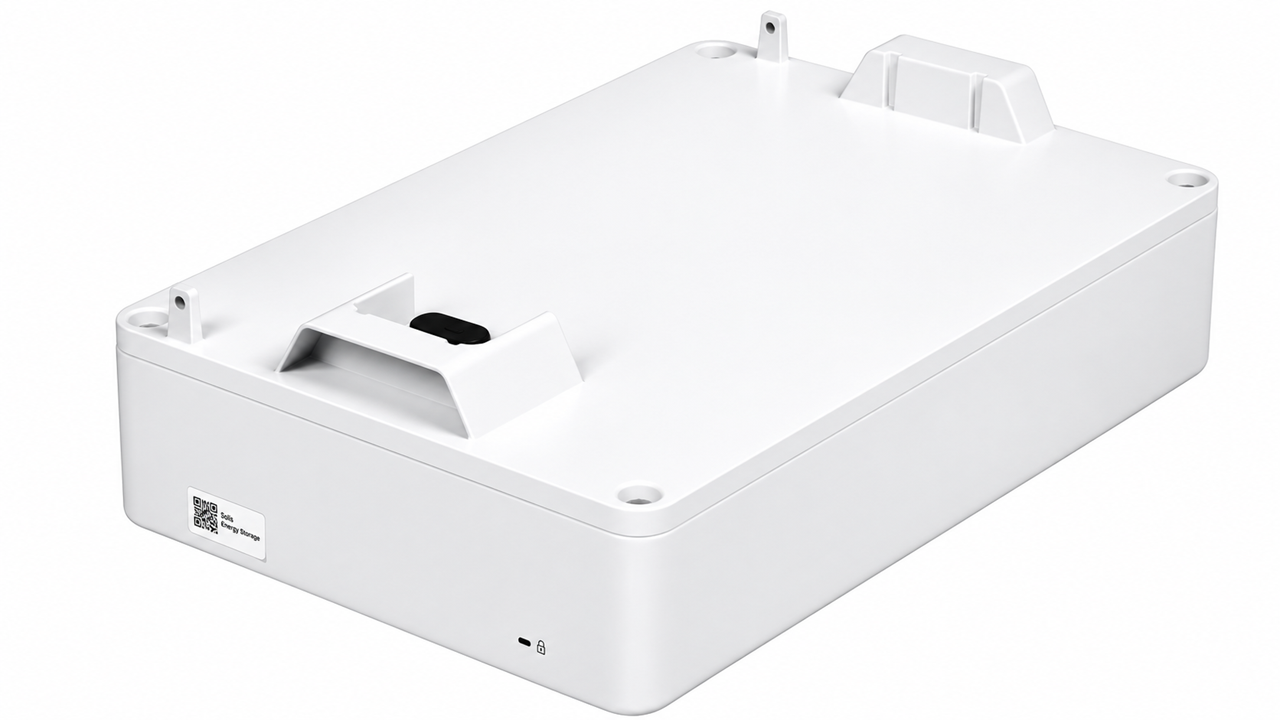

Fox ESS Cube EQ5000 4.92kWh HV Battery (Slave)

Fox EQ5000, 4.92kWh HV Battery (Slave)

#2: FE-HV-EQS-5000 Storage Systems - Li-ion Battery Pack

Fox EQ5000 Datasheet

Fox Product Compatibility

Fox EQ5000 Warranty

🔋 Fox ESS EQS5000 High Voltage Battery Slave – 4.92kWh Modular Storage System

The Fox ESS EQS5000 High Voltage Battery Slave is a modular lithium-ion battery designed for use as part of the Fox ESS EQ high-voltage battery storage system. The scalable design allows compatible battery modules to be added to increase total energy storage capacity as requirements grow.

The EQS5000 works alongside a compatible Fox ESS EQ master battery module and forms part of a flexible battery stack with a maximum system capacity of up to 29.52kWh.

Important: The EQS5000 is a slave battery module and cannot operate independently. A compatible Fox ESS EQ master module is required.

Modular & Scalable Battery Storage

Expandable Up to 29.52kWh

The Fox ESS EQ battery system uses a modular design that allows compatible battery modules to be connected together to increase total energy storage capacity.

A compatible battery stack requires:

• Minimum configuration: 2 modules

  • 1 × Master battery

  • 1 × Slave battery

• Maximum configuration: 6 modules

  • 1 × Master battery

  • Up to 5 × Slave batteries

• Maximum system capacity: Up to 29.52kWh

This flexible configuration allows the battery storage system to be expanded as energy requirements increase.

Easy Plug-and-Play Installation

The modular design supports straightforward installation and system expansion, helping installers save time when assembling compatible Fox ESS EQ battery stacks.

⚡ Battery Performance & Energy Storage

90% Depth of Discharge

The Fox ESS EQS5000 supports a 90% depth of discharge (DoD), allowing a significant proportion of stored energy to be utilised within a compatible battery system.

Charging & Discharging Performance

The battery module is designed to support reliable energy storage and delivery when installed as part of a compatible Fox ESS EQ system.

Performance specifications include:

• Continuous discharge rate: 1,440W

• Maximum discharge rate (5 minutes): 2,880W

• Surge discharge rate (15 seconds): 3,000W

• Maximum charge rate (5 minutes): 2,880W

Communication & System Integration

CAN & RS485 Communication

The EQS5000 supports CAN and RS485 communication, allowing compatible battery modules to communicate within the wider energy storage system.

Designed for High-Voltage Battery Systems

The EQ battery range is designed as a scalable energy storage platform, providing flexibility for installations that may require additional battery capacity in the future.

Adding Batteries to an Existing EQ Stack

Check Module Compatibility Before Expansion

If you are adding an EQS5000 battery module to an existing Fox ESS EQ battery stack, it is important to confirm that the new battery is compatible with the existing modules.

Before installation, contact your technical support representative through the relevant portal and provide a photograph of the existing battery stack to help determine compatibility.

Heated & Non-Heated Battery Compatibility

Mixed Battery Configurations

Heated and non-heated Fox ESS EQ battery versions can be used together within the same compatible battery system.

For example:

• A non-heated master module can be connected to heated slave modules.

• A heated master module can be connected to non-heated slave modules.

However, if any battery module within the system does not support heating, the heating function will be disabled for the entire battery system.

⚠️ Warranty Registration Information

Activate Your 10-Year Product Warranty

The Fox ESS installation must be registered online to activate the 10-year product warranty.

Please refer to the applicable Fox ESS warranty documentation and registration requirements for full warranty terms, conditions and eligibility.

Technical Specifications

Product Details

• Manufacturer: Fox ESS

• Product Range: EQ High Voltage Battery

• Product Type: Slave Battery Module

• Part Number: FE-HV-EQS-5000

• Supplier Part Number: EQ5000-S

• Battery Chemistry: Lithium-Ion

• Weight: 46.6kg

• Length: 0.66m

Electrical Specifications

• Nominal Energy: 2,880Wh

• Depth of Discharge: 90%

• Voltage: 52V

• Continuous Discharge Rate: 1,440W

• Maximum Discharge Rate (5 Minutes): 2,880W

• Surge Discharge Rate (15 Seconds): 3,000W

• Maximum Charge Rate (5 Minutes): 2,880W

Why Choose the Fox ESS EQS5000 Battery Slave?

• Modular 4.92kWh-class battery storage system

• Designed for use with a compatible Fox ESS EQ master module

• Expandable battery stack up to 29.52kWh

• Supports up to 6 modules per battery stack

• 90% depth of discharge

• CAN and RS485 communication

• Plug-and-play modular installation

• Supports compatible heated and non-heated module configurations

• Suitable for expanding compatible Fox ESS EQ energy storage systems

• 10-year product warranty available following eligible online registration
