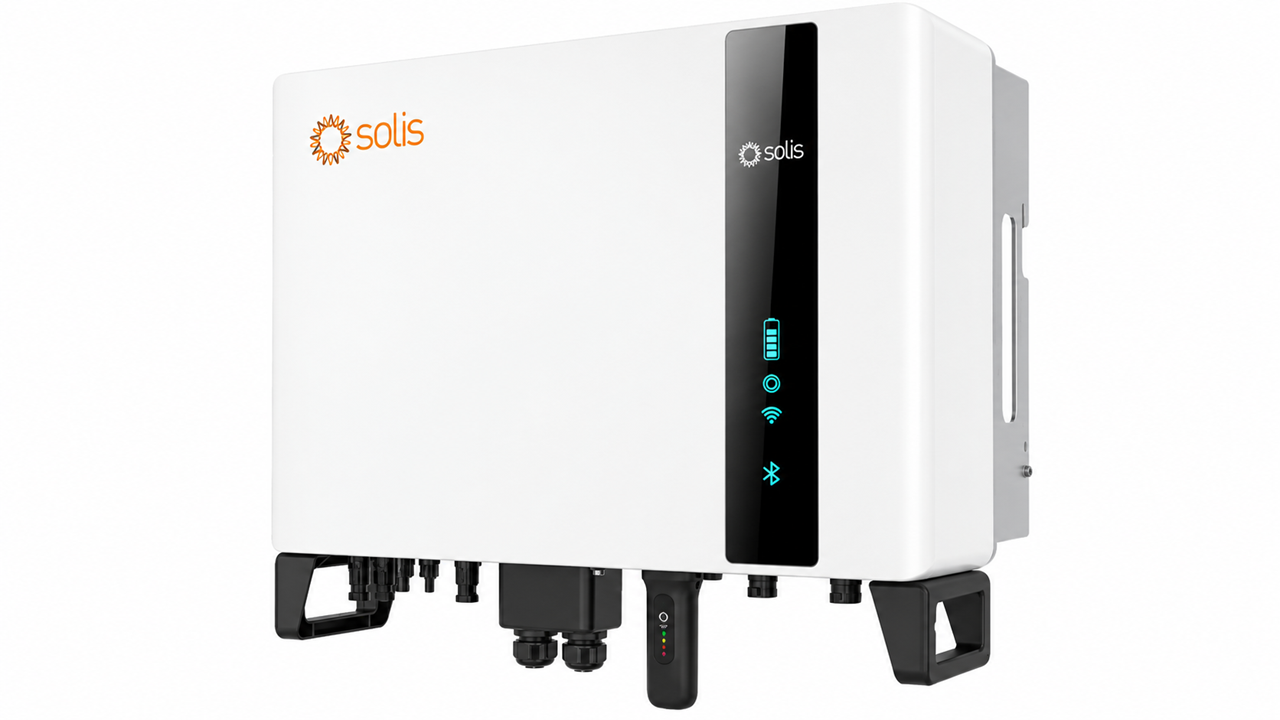

Solis S6 10kW 3PH High Voltage Hybrid Inverter (incl. 3PH meter)ย
#2: SOL-S6-EH3P-10.0K-UKย ย Storage Systems - Hybrid Inverter
Solis S6 10kW Inverter Data Sheet
Solis S6 10kW Inverter Warranty
Solis S6 10kW G100 Certificate
Eastron 3ph meter and (WiFi & LAN) data logger stick included
ย
โก Solis S6 10kW Three Phase Hybrid Inverter โ 4 MPPT
The Solis S6 10kW Three Phase Hybrid Inverter is a high-performance energy storage inverter designed for solar PV and battery storage systems. With 4 MPPTs, up to 20kW of DC input power and a 10kW charge/discharge rating, it provides flexible solar generation and energy storage management for a wide range of applications.
Its multiple MPPT inputs make it particularly suitable for installations with multiple PV array orientations or complex roof layouts. The inverter also supports on-grid, backup and off-grid operating modes, with generator communication available for compatible off-grid applications.
High-Performance Solar & Battery Storage
4 MPPTs for Flexible PV Array Design
The inverter features 4 independent MPPTs, allowing solar arrays with different orientations or operating conditions to be managed more effectively.
With support for up to 16A MPPT input current, the S6 is compatible with modern high-power PV modules, including 182mm and 210mm solar panels.
Up to 200% DC Oversizing
The inverter supports up to 200% DC oversizing, allowing a larger solar PV array to be connected relative to the inverter's rated AC output.
-
Rated AC Power: 10,000W
-
Maximum DC Power: 20,000W
-
Maximum Input Voltage: 1,000V
-
MPPT Quantity: 4
-
Maximum DC Current: 64A
๐ Powerful Battery Charging & Backup
Up to 10kW Charge & Discharge Power
The Solis S6 supports up to 50A and 10kW maximum battery charge and discharge power, helping deliver strong battery performance for compatible energy storage systems.
The inverter is compatible with multiple battery brands and models, providing greater flexibility when selecting a compatible battery storage solution.
High Backup Power Capability
With support for up to 10kW of backup loads, the inverter can help maintain power to supported loads during grid interruptions when installed as part of a correctly configured energy storage system.
The system also supports unbalanced and half-wave loads on both the Grid Port and Backup Port.
Reliable Backup & Off-Grid Operation
UPS-Level Switching
The inverter offers a switching time of less than 10ms, helping provide uninterrupted power for compatible critical loads when operating in backup mode.
Generator Communication Support
The S6 supports pure off-grid applications and generator communication, providing additional flexibility for systems requiring alternative power generation.
Parallel System Expansion
Up to 10 compatible inverter units can be connected in parallel on the Grid and Backup sides, allowing larger system capacities to be created for small to medium-scale commercial energy storage applications.
Smart Monitoring & Remote Management
SolisCloud App Connectivity
The inverter can be monitored, controlled and upgraded remotely through the SolisCloud platform, helping reduce the need for unnecessary site visits.
Remote monitoring allows users and installers to review system performance and manage compatible inverter settings through the connected platform.
Multiple Operating Modes
The inverter offers multiple working modes to support different solar generation, battery storage and backup power requirements.
โ ๏ธ Advanced Safety & Reliable Design
Integrated AFCI Protection
The S6 features an integrated Arc Fault Circuit Interrupter (AFCI) function designed to actively detect potential arc faults within the PV array.
Fanless Natural Convection Cooling
The inverter uses a natural convection cooling design without external fans, reducing moving components while supporting reliable operation.
Technical Specifications
Product Details
Solar PV Input
-
MPPT Quantity: 4
-
Maximum DC Inputs: 4
-
Minimum MPPT Voltage: 200V
-
Maximum MPPT Voltage: 850V
-
DC Start-Up Voltage: 160V
-
DC Shutdown Voltage: 160V
-
Maximum Input Voltage: 1,000V
-
Maximum DC Power: 20,000W
-
Maximum DC Current: 64A
-
Maximum MPPT Input Current: Up to 16A per MPPT
-
Connector Type: MC4
-
Included Connectors: 4
AC Output
-
Rated Power: 10,000W
-
Maximum AC Power (5 Minutes): 11,000W
-
Surge AC Power (1 Second): 12,000W
-
Euro Efficiency: 97.7%
Installation Features
-
Integrated DC Switch: Yes
-
Cooling Method: Natural convection
-
AFCI Protection: Integrated
-
Parallel Operation: Up to 10 compatible units
Why Choose the Solis S6 10kW Three Phase Hybrid Inverter?
-
10kW three-phase hybrid inverter
-
4 independent MPPTs for flexible solar array layouts
-
Supports up to 20kW DC solar input
-
Up to 200% DC oversizing
-
Compatible with multiple battery models
-
Up to 10kW battery charge and discharge power
-
Supports up to 10kW backup loads
-
UPS-level switching in less than 10ms
-
Supports unbalanced and half-wave loads
-
Pure off-grid capability with generator communication support
-
Up to 10 compatible units in parallel
-
Remote monitoring and upgrades via SolisCloud
-
Integrated AFCI protection
-
Fanless natural convection cooling design
